Stepper Motor,
Size 23, 240 oz-in, 400 Steps per Revolution
|
|
Model
|
Holding Torque
|
Current per Phase
|
Voltage
|
Resistance per Phase
|
Inductance per Phase
|
Rotor
Inertia
|
|
oz-in
N-m
|
Amp
|
Volts
|
Ohms
|
mH
|
o
z-in2
Kg-m2
|
|
STPM-23-400-240-W
|
240
1.75
|
|
2.80
|
3.16
|
1.13
|
4.8
|
0.66
120 x 10
-7
|
|
|

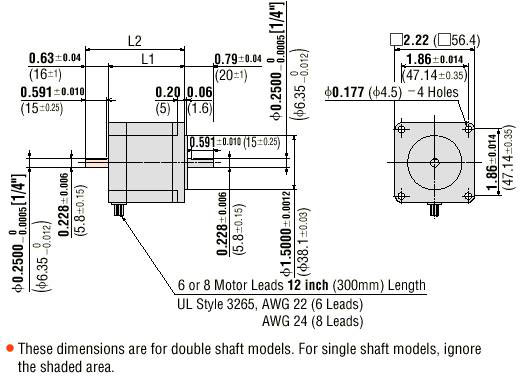

Dimensions
|
|
L1 = 2.99“ (76 mm)
L2 = 3.62” (92 mm)
Weight = 2.2 lb (1.0 Kg)
|

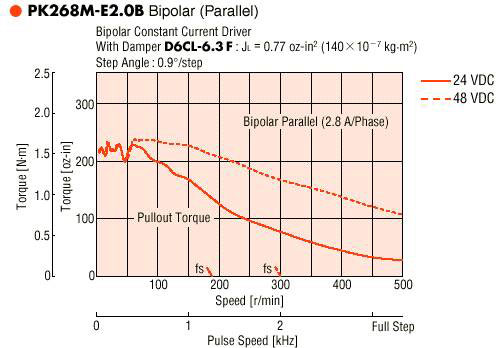

Speed Vs. Torque Characteristics
|
|
|
|
|
