Stepper Motor,
Size 23, 68 oz-in, 400 Steps per Revolution
|
|
Model
|
Holding Torque
|
Current per Phase
|
Voltage
|
Resistance per Phase
|
Inductance per Phase
|
Rotor
Inertia
|
|
oz-in
N-m
|
Amp
|
Volts
|
Ohms
|
mH
|
oz-in2
Kg-m2
|
|
STPM-23-400-68-W
|
68
0.48
|
|
2.80
|
1.96
|
0.70
|
1.70
|
0.66
120 x 10
-7
|
|

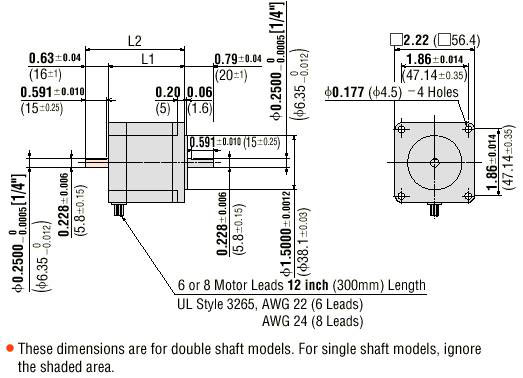

Dimensions
|
|
L1 = 1.54 “ (39 mm)
L2 = 2.17” (55 mm)
Weight = 0.99 lb (0.45 Kg)
|

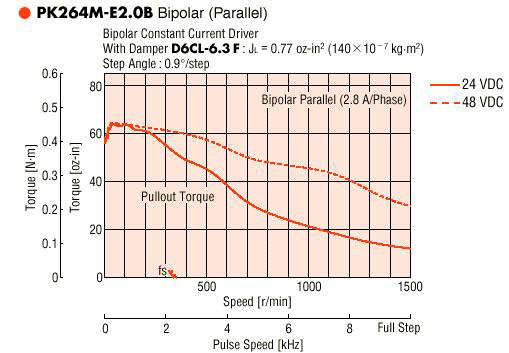

Speed Vs. Torque Characteristics
|
|
|
|
|
