Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Super Thin Stainless Steel Stage

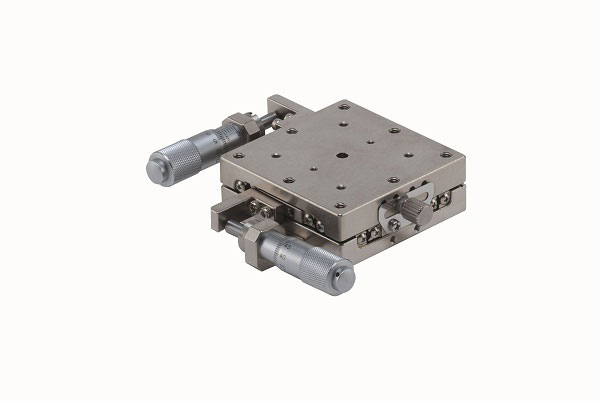

Manual Linear Positioning Stage Picture

This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 60 X 60 mm has a body weight of 0.64 kg.

It provides side type of feed position.

The maximum load of this linear table is 19 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Micrometer
minimum reading Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish

MYW60-SS
60 by 60 XY-axis Side +/-6.5 10 micron 3 micron 19 0.64 stainless steel 440C Electroless nickel plating

Mechanical Drawing

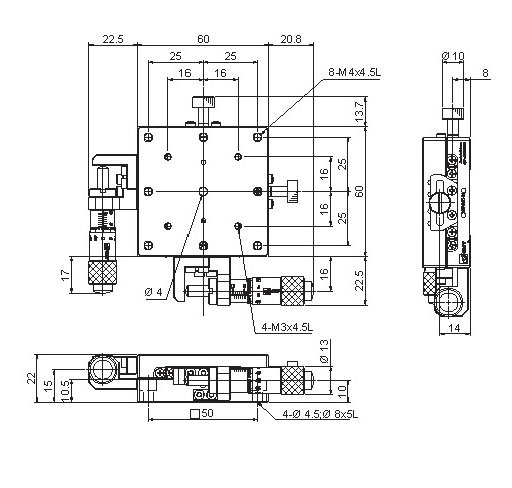

Manual Linear Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MYW60-SS	Manual Stage, Linear Ball Stainless Steel Stages, Super Thin Stainless Steel Stage, Range of Travel +/-6.5 mm	Click to Get a Quote
