Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Super Thin X-axis

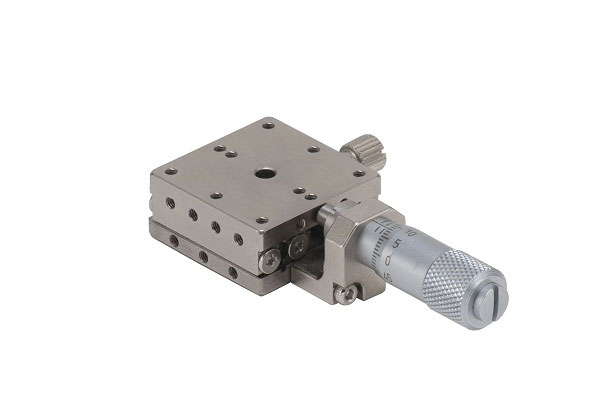

Manual Linear Positioning Stage Picture


This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 25 X 25 mm has a body weight of 0.07 kg.

It provides central type of feed position.

The maximum load of this linear table is 4 kg.

The stroke is +/- 3.2 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Part No.. Table
Size
Axis Feed
Position
Travel Distance Movement accuracy
straightness
Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MX25-SC

25 mm by 25 mm X Central +/-3.2 3 micron 4 0.07 stainless steel 440C Electroless nickel plating 10 micron

Mechanical Drawing

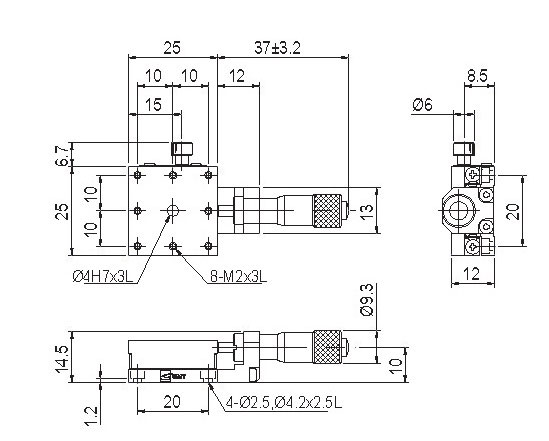

Manual Linear Positioning Stage Mechanical Drawing
MX25-SC

 Ordering Information

Part No. Description Amount
MX25-SC Manual Stage, Linear Ball Stage, Sub Stage X-axis, Range of Travel +/-3.2 mm Click to Get a Quote
