Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Stainless Steel Stage XY-axis

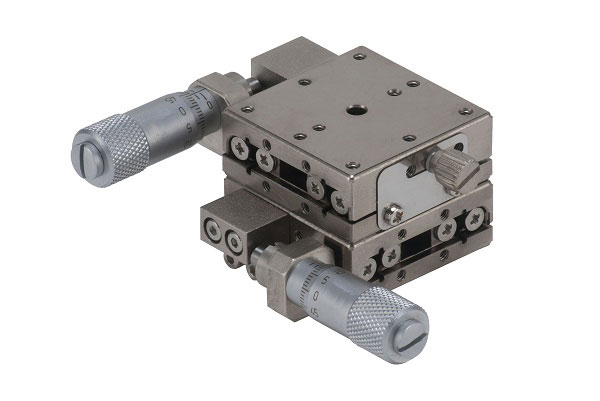

Manual Linear Positioning Stage Picture

This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 30 X 30 mm has a body weight of 1.9 kg.

It provides side type of feed position.

The maximum load of this linear table is 3.9 kg.

The stroke is +/- 3.2 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MY30-SS
30 mm by 30 mm XY Side +/-3.2 3 micron 2 1.9 stainless steel 440C Electroless nickel plating 10 micron

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MY30-SS

Ordering Information

Part No.	Description	Amount
MY30-SS	Manual Stage, Linear Ball Stage, Sub Stage X-axis, Range of Travel +/-3.2 mm	Click to Get a Quote
