Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Stainless Steel Z-axis Stages

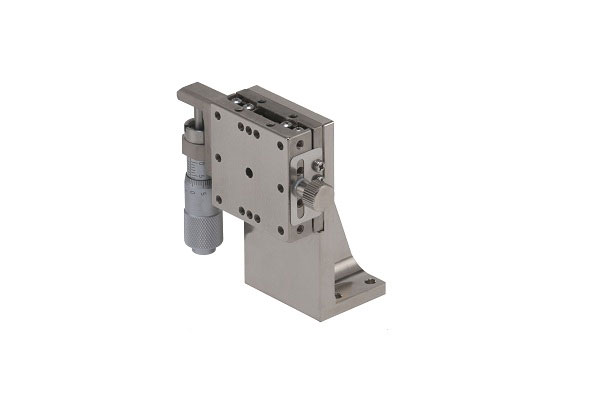

Manual Linear Positioning Stage Picture

This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 40 X 40 mm has a body weight of 0.32 kg.

The maximum load of this linear table is 5.0 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness are straightness:3 microns, vertical yawing: 25 and parallel yawing: 15.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Micrometer
minimum reading Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Movement accuracy

Straightness Vertical yawing Parallel yawing

MZL40-SS
40 by 40 10 micron 5.0 0.32 stainless steel 440C Electroless nickel plating +/-6.5 3 micron 25 15

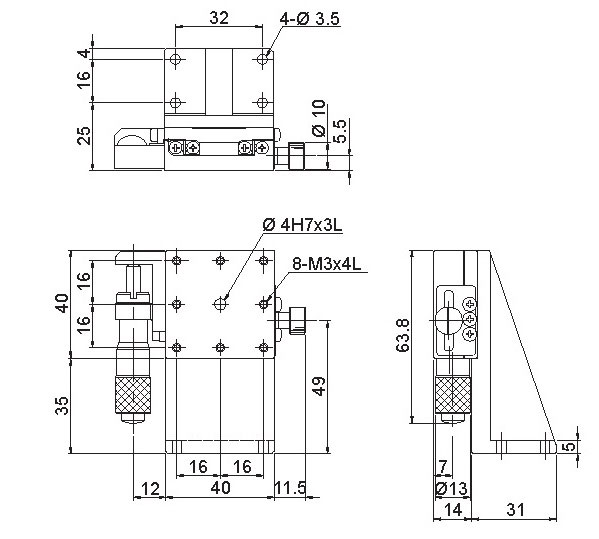

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MZL40-SS

Ordering Information

Part No.	Description	Amount
MZL40-SS	Manual Stage, Linear Ball Stage, Stainless Steel Z-axis Stage, Travel Distance +/-6.5 mm	Click to Get a Quote
