Manual Crossed Roller XYZ Axis Positioning Stage
MXYZ25-A

Home >  Manual Stages > Crossed Roller Stages, XYZ Axis

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual crossed roller XYZ-axis positioning stage is made of aluminum alloy with an black anodized coating.

The table size is 100 x 100 mm has a body weight of 3.12 kg.

The maximum load of this super thin table is 5 kg.

The movement accuracy is Straightness 5microns ,Vertical yawing 25" and Parallel yawing 15".

Specifications
Part No.. Table
size
Axis Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Movement accuracy
Straightness Vertical yawing Parallel yawing
  MXYZ100-A 100 by 100 XYZ 5 3.12 Aluminum alloy Black anodized 5 micron 25 15

Model

Detail dimension from front side viewing

Detail dimensions from right side viewing

Type

A

H

C

K1

Q

J

F

E

B+/-S(Movement)

N

D

G

G1

P

MXYZ

100

80

100.7

56

14.5

11.2

24

17

35.5+/-12.5

36

18

10.8

16.7

10

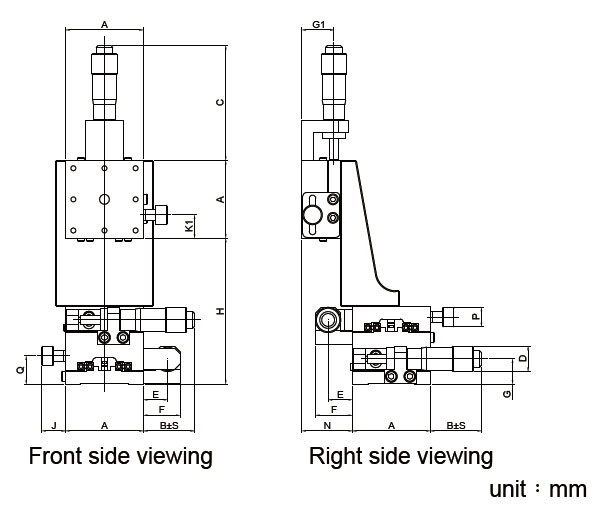

Mechanical Drawing

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXYZ100-A Crossed Roller Stage XYZ Axis 100 x 100 mm Table with Travel 25 mm Click to Get a Quote
