Manual Crossed Roller XYZ Axis Positioning Stage

Home >  Manual Stages > Crossed Roller Stages, XYZ Axis

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual crossed roller XYZ-axis positioning stage is made of aluminum alloy with an black anodized coating.

The table size is 25 x 25 mm has a body weight of 0.16 kg.

The maximum load of this super thin table is 1 kg.

The movement accuracy is Straightness 5microns ,Vertical yawing 30" and Parallel yawing 25".

  Unit: mm
Part No.. Table
Axis Load Capacity
Material Surface
Movement accuracy
Straightness Vertical yawing Parallel yawing
  MXYZ25-AA 25 by 25 XYZ 1 0.16 Aluminum alloy Black anodized 5 micron 30 25

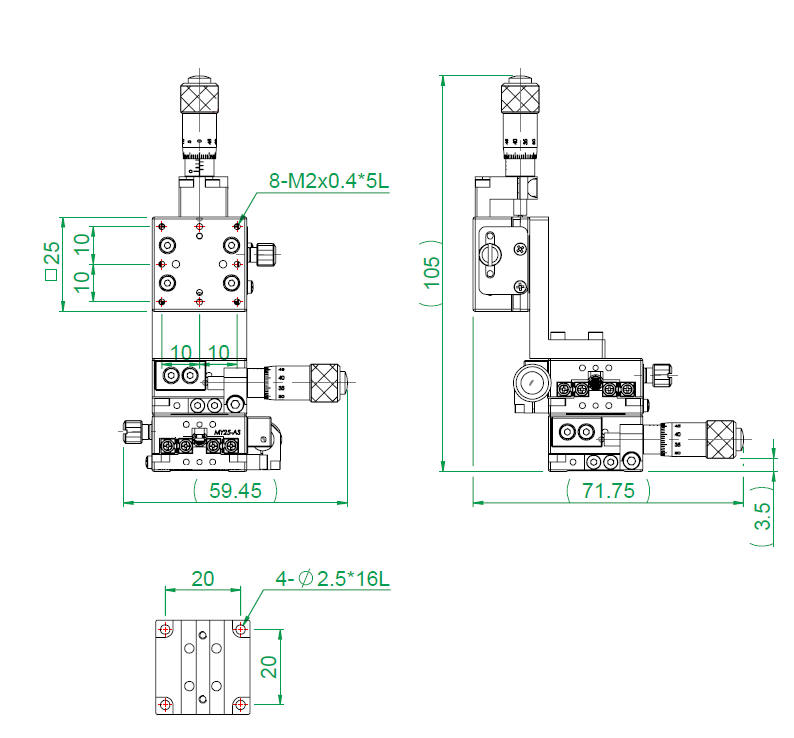

Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXYZ25-AA Crossed Roller Stage XYZ Axis 25x25 mm Table with Travel 6.4 mm Click to Get a Quote
