Manual Crossed Roller XYZ Axis Positioning Stage
MXYZ25-A
|
 |
Home >
Manual Stages >
Crossed Roller Stages, XYZ Axis
|
 |
|
|
This manual crossed roller XYZ-axis positioning stage is
made of aluminum alloy with an black anodized coating.
The table size is 40 x 40 mm has a body weight of 0.53 kg.
The maximum load of this super thin table is 1 kg.
The movement accuracy is Straightness 5microns ,Vertical yawing 25" and Parallel yawing 15".
|
|
Specifications
|
Part No.. |
Table
size |
Axis |
Load Capacity
(kg) |
Weight
(kg) |
Material |
Surface
finish |
Movement accuracy |
|
Straightness |
Vertical yawing |
Parallel yawing |
|
MXYZ40-A |
40 by 40 |
XYZ |
1 |
0.53 |
Aluminum alloy |
Black anodized |
5 micron |
25 |
15 |
|
Model |
Detail
dimension from front side viewing |
Detail
dimensions from right side viewing |
|
Type |
A |
H |
C |
K1 |
Q |
J |
F |
E |
B+/-S(Movement) |
N |
D |
G |
G1 |
P |
|
MXYZ |
40 |
75 |
59.7 |
28 |
14.5 |
11.2 |
19 |
12.5 |
26.3+/-6.5 |
26 |
13 |
13 |
17 |
10 |
|
|
|

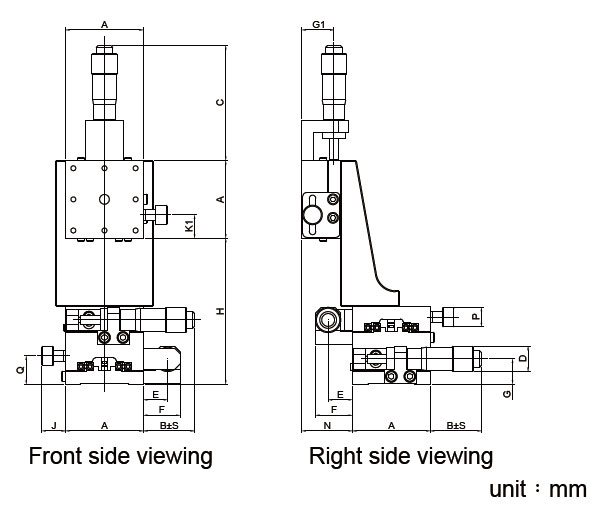

Mechanical Drawing
|
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
MXYZ40-A |
Crossed Roller Stage XYZ Axis 40 x 40 mm Table with Travel 13mm
|
Click to Get a Quote |
|
|
