Manual Crossed Roller XYZ Axis Positioning Stage
MXYZ25-A
|
 |
Home >
Manual Stages >
Crossed Roller Stages, XYZ Axis
|
 |
|
|
This manual crossed roller XYZ-axis positioning stage is
made of aluminum alloy with an black anodized coating.
The table size is 60 x 60 mm has a body weight of 1.01 kg.
The maximum load of this super thin table is 2 kg.
The movement accuracy is Straightness 5microns ,Vertical yawing 25" and Parallel yawing 15".
|
|
Specifications
|
Part No.. |
Table
size |
Axis |
Load Capacity
(kg) |
Weight
(kg) |
Material |
Surface
finish |
Movement accuracy |
|
Straightness |
Vertical yawing |
Parallel yawing |
|
MXYZ60-A |
60 by 60 |
XYZ |
2 |
1.01 |
Aluminum alloy |
Black anodized |
5 micron |
25 |
15 |
|
Model |
Detail
dimension from front side viewing |
Detail
dimensions from right side viewing |
|
Type |
A |
H |
C |
K1 |
Q |
J |
F |
E |
B+/-S(Movement) |
N |
D |
G |
G1 |
P |
|
MXYZ |
60 |
60 |
59.7 |
17.5 |
14.4 |
11.2 |
19 |
12.5 |
20.3+/-6.5 |
30 |
13 |
13 |
17 |
10 |
|
|
|

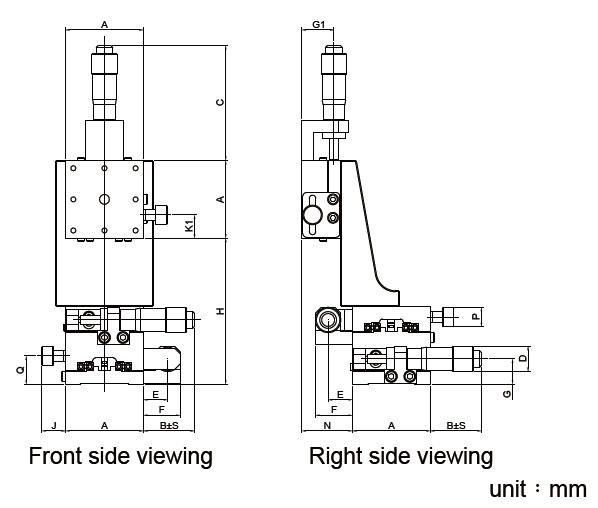

Mechanical Drawing
|
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
MXYZ60-A |
Crossed Roller Stage XYZ Axis 60 x 60 mm Table with Travel 13mm
|
