Manual Crossed Roller XYZ Axis Positioning Stage

Home >  Manual Stages > Crossed Roller Stages, XYZ Axis

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual crossed roller XYZ-axis positioning stage is made of aluminum alloy with an black anodized coating.

The table size is 60 x 60 mm has a body weight of 1.07 kg.

The maximum load of this super thin table is 4 kg.

The Multiple axes is base MY60–AS, Middle ..and Top MZA–60 .

The Outline dimensions are W 117.5 , D 91.45 and H 95 mm.

The Range of Travel are X +/-6.5 , Y +/-6.5 and Z +/-5.0.

Part No.. Multiple axes Table
Outline dimensions (mm) Range of Travel (mm) Load Capacity
Base Middle Top W D H X Y Z θ
  MXYZA60-A MY60-AS - MZA-60 60×60 117.5 91.45 95 +/-6.5 +/-6.5 +/-5.0 - 4 1.07

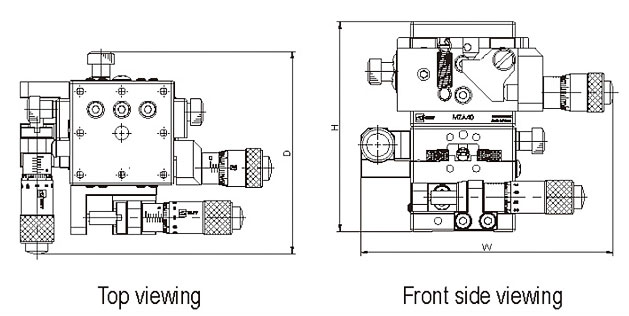

Mechanical Drawing

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXYZA60-A Crossed Roller Stage Multi Axis 60 x 60 mm Table with Travel 13mm Click to Get a Quote
