Manual Crossed Roller XZ Axis Positioning Stage
MXZ50-A

 Home >  Manual Stages > XZ Stages

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This Manual Crossed Roller XZ Axis Positioning Stage is made of aluminum alloy with an black anodized coating.

The table size is 50 x 50 mm has a body weight of 0.52 kg.

The maximum load of this super thin table is 1 kg.

The movement accuracies are: Straightness 5microns ,Vertical yawing 25" and Parallel yawing 15".

Specifications
  Unit: mm
Part No.. Table
size
Axis Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Movement accuracy
Straightness Vertical yawing Parallel yawing
 MXZ50-A 50 by 50 XZ 1 0.52 Aluminum alloy Black anodized 5 micron 25" 15"

Model

Detail dimension from front side viewing

Detail dimensions from right side viewing

Type

A

H

C

K1

P

Q

J

F

B+/-S(Movement)

N

D

G

G1

MXZ

50

40

59.7

33

10

14.5

11.2

19

21.3+/-6.5

5

13

13

17

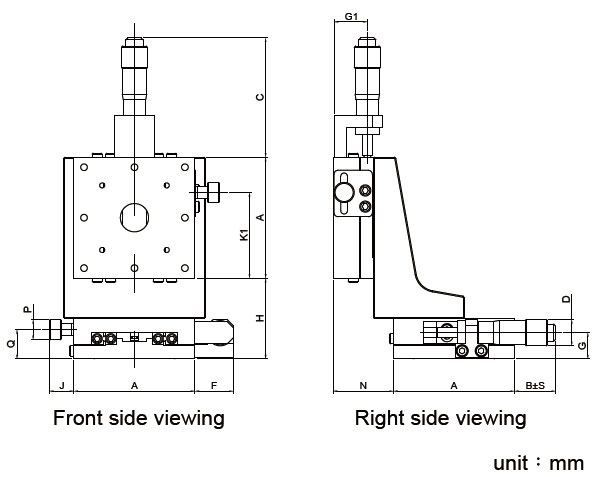

Mechanical Drawing

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXZ50-A Crossed Roller Stage XZ Axis 50x50 mm Table with Travel 13mm Click to Get a Quote
