Manual Linear Positioning Stage

Home > Manual Stages > Simplified Stages > Miniature Simplified X-Axis Stages

Manual Linear Positioning Stage Picture

This manual linear positioning is made of aluminum alloy with an black anodized coating.

The bench size is 12 X 13 mm has a body weight of 0.01 kg.

The maximum load of this linear table is 0.5 kg.

The stroke is +/- 1.7 mm.

The movement accuracy straightness is 50 microns.

The minimum reading is no scale with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Minimum reading
indicator

MN2A-12
12 mm by 13 mm XY 50 micron 0.5 0.01 Aluminum Alloy Black anodized +/- 1.7 No Scale

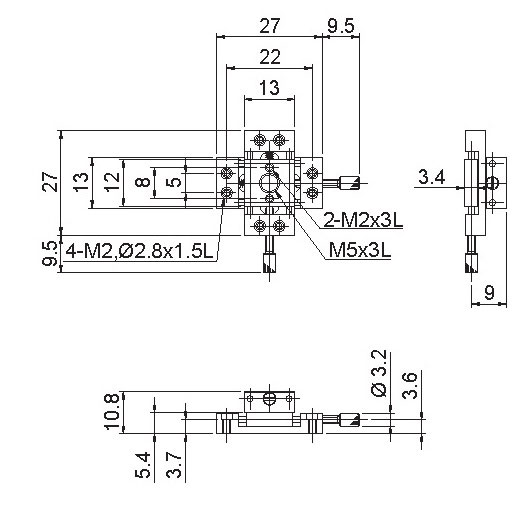

Manual Linear Positioning Stage Mechanical Drawing
MN2A-12

Ordering Information

Part No.	Description	Amount
MN2A-12	Manual Stage, Simplified Stage, Miniature Simplified X-Axis Stage, Range of Travel +/- 1.7 mm	Click to Get a Quote
