Manual Linear Positioning Stage

Home > Manual Stages > Simplified Stage > Miniature Simplified X-Axis Stage

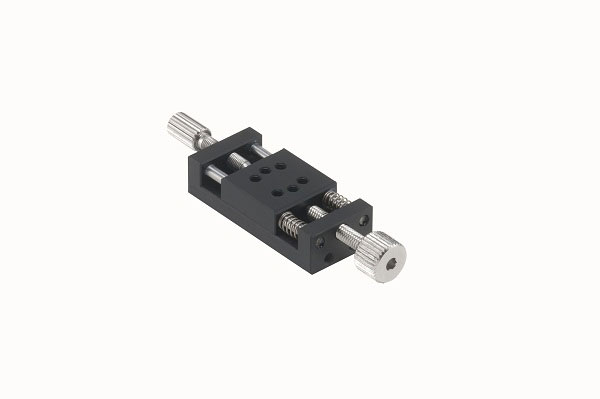

Manual Linear Positioning Stage Picture

This manual linear positioning is made of aluminum alloy with an black anodized coating.

The bench size is 20 X 20 mm has a body weight of 0.038 kg.

The maximum load of this linear table is 0.2 kg.

The stroke is +/- 5 mm.

The minimum reading is 0.05 mm scale with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Travel Distance Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MNG1E-20CL
20 by 20 X axis +/- 5 0.2 0.038 Aluminum Alloy Black anodized 0.5 mm

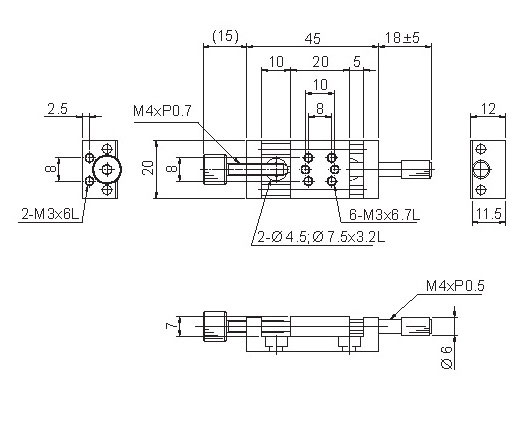

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MNG1E-20CL	Manual Stage, Simplified Stage, Miniature Simplified X-Axis Stage, Range of Travel +/- 5 mm	Click to Get a Quote
