Manual Linear Positioning Stage

Home > Manual Stages > Simplified Stage > Miniature Simplified X-Axis Stage

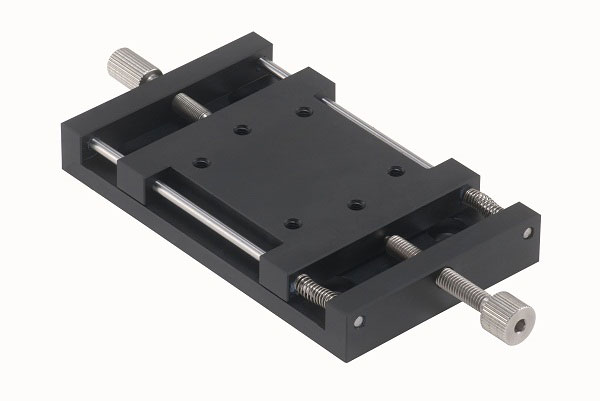

Manual Linear Positioning Stage Picture

This manual linear positioning is made of aluminum alloy with an black anodized coating.

The bench size is 60 X 60 mm has a body weight of 0.193 kg.

The maximum load of this linear table is 1.5 kg.

The stroke is +/- 7.5 mm.

The minimum reading is 0.05 mm scale with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Travel Distance Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MNG1E-60CL
60 by 60 X axis +/- 7.5 1.5 0.193 Aluminum Alloy Black anodized 0.5 mm

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MNG1E-60CL	Feeding Screw Simplified Stage X-Axis Size: 60 x 60 mm Travel: 15 mm Precision: 0.5 mm	Click to Get a Quote
