Manual Linear Positioning Stage

Home > Manual Stages > Simplified Stage > Miniature Simplified XY-Axis Stages

Manual Linear Positioning Stage Picture

This manual linear positioning is made of aluminum alloy with an black anodized coating.

The bench size is 15 X 17 mm has a body weight of 0.02 kg.

The maximum load of this linear table is 1 kg.

The stroke is +/- 5 mm.

The movement accuracy straightness is 50 microns.

The minimum reading is no scale with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Minimum reading
indicator

MN1A-15
15 mm by 17 mm X 50 micron 1 0.02 Aluminum Alloy Black anodized +/- 5 No Scale

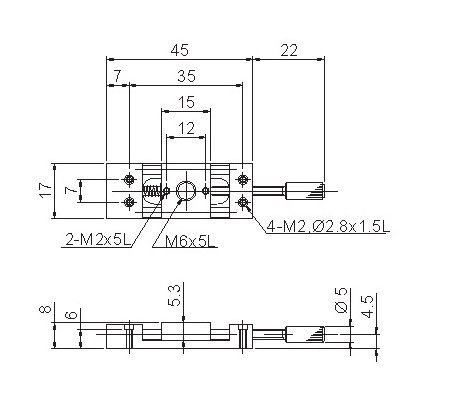

Manual Linear Positioning Stage Mechanical Drawing
MN1A-15

Ordering Information

Part No.	Description	Amount
MN1A-15	Manual Stage, Simplified Stage, Miniature Simplified XY-Axis Stage, Range of Travel +/- 5 mm	Click to Get a Quote
