Manual Single-axis Linear Positioning Stage
MX80-AC

Home > Manual Stages > Crossed Roller Stages > X-axis Stages

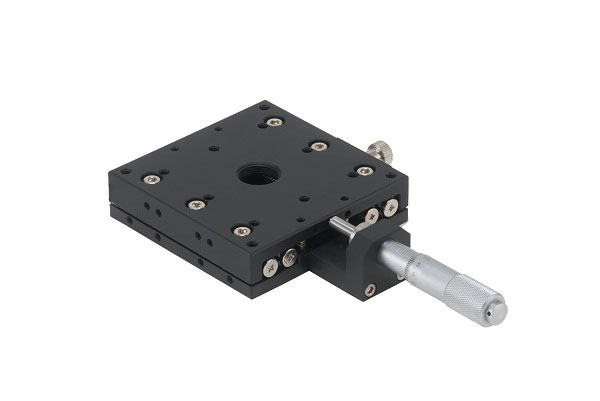

Manual Single-axis Linear Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 80 x 80 mm has a body weight of 0.5 kg.

It provides central type of feed position.

The maximum load of this super thin table is 10 kg.

The stroke is +/- 12.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Micrometer
minimum reading Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish

MX80-AC
80 by 80 X axis Center +/-12.5 10 micron 3 micron 10 0.5 Aluminum Alloy Black anodized

Mechanical Drawing

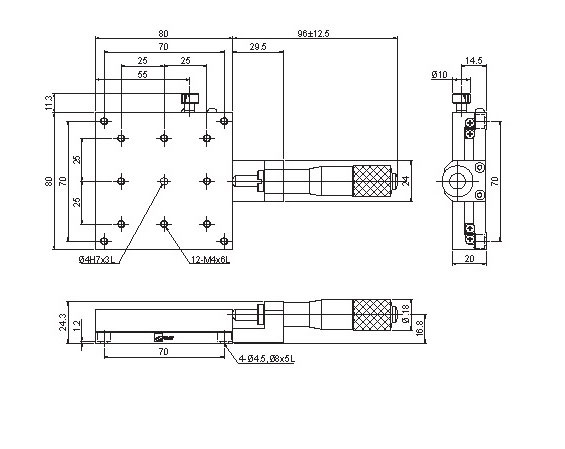

Manual Single-axis Linear Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MX80-AC	Crossed Roller Mini Aluminum Stage X Axis 80 x 80 mm Table with 25 mm Travel	Click to Get a Quote

Manual Single-axis Linear Positioning Stage MX80-AC

Manual Single-axis Linear Positioning Stage
MX80-AC
