Manual Linear XY-axis Positioning Stage
MY40-AS

Home > Manual Stages > Crossed Roller Stages > XY-axis Stages

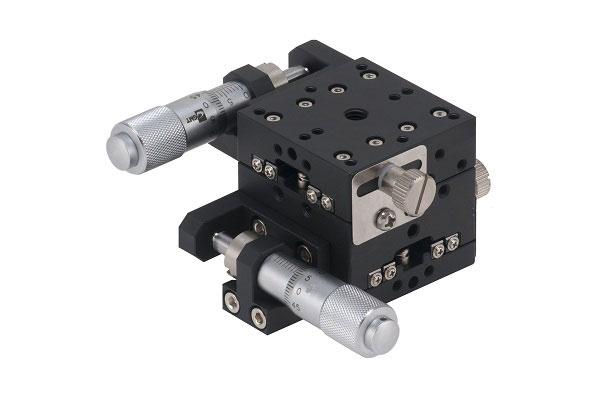

Manual Linear XY-axis Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 40 X 40 mm has a body weight of 0.3 kg.

It provides side type of feed position.

The maximum load of this super thin table is 1.8 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Micrometer
minimum reading Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish

MY40-AS
40 by 40 XY axis Side +/-6.5 10 micron 3 micron 1.8 0.3 Aluminum Alloy Black anodized

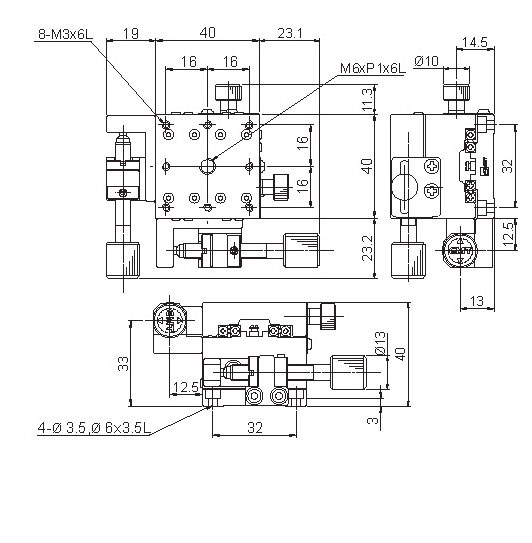

Mechanical Drawing

Manual Linear XY-axis Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MY40-AS	Crossed Roller Stage Side Drive XY-Axis 40 x 40 mm Size 13mm Travel 0.01 mm Precision	Click to Get a Quote
