Manual Linear XY-axis Positioning Stage
MY50-AS

Home > Manual Stages > Crossed Roller Stages > XY-axis Stages

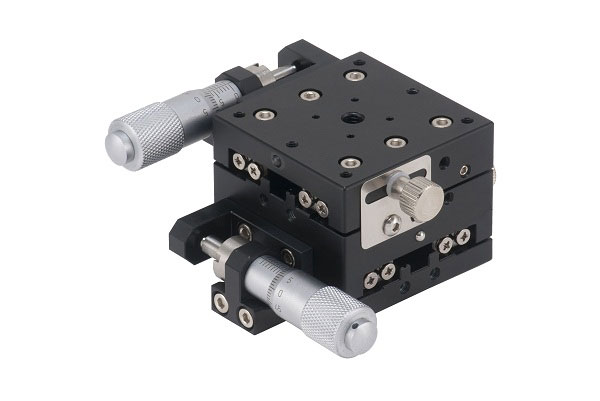

Manual Linear XY-axis Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 50 x 50 mm has a body weight of 0.44 kg.

It provides side type of feed position.

The maximum load of this super thin table is 4 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MY50-AS
50 mm by 50 mm XY axis Side +/-6.5 mm 3 micron 4 0.44 Aluminum Alloy Black anodized 10 micron

Mechanical Drawing

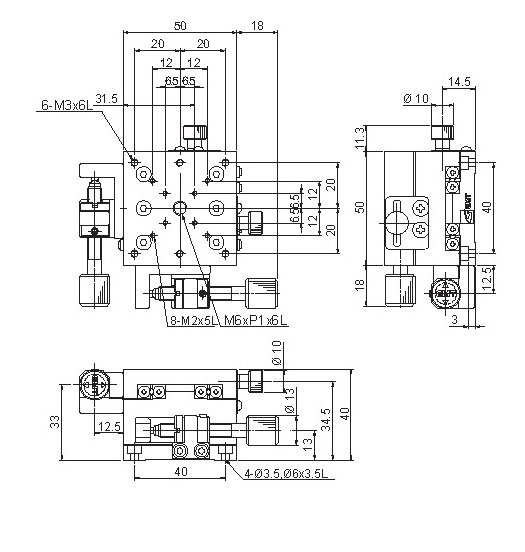

Manual Linear XY-axis Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MY50-AS	Crossed Roller Stage Side Drive XY-Axis 50x50 mm Size 13mm Travel 0.01 mm Precision	Click to Get a Quote
