Manual Linear Positioning Stage

Home > Manual Stages > Crossed Roller Stages > Vertical Stages

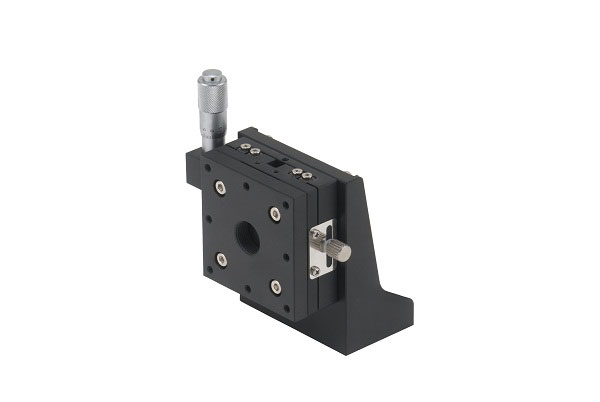

Manual Linear Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 60 X 60 mm has a body weight of 0.52 kg.

It provides side type of feed position.

The maximum load of this super thin table is 2 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Micrometer
minimum reading Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish

MLZ60-ASZ
60 by 60 X+L Bracket Side +/-6.5 10 micron 3 micron 2 0.52 Aluminum Alloy Black anodized

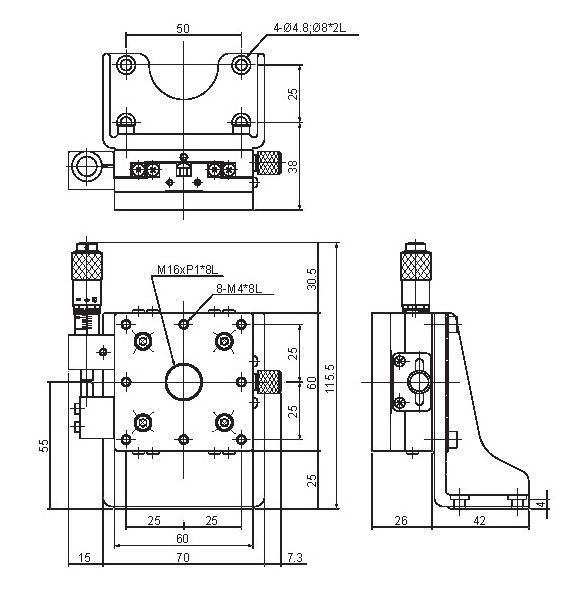

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MLZ60-ASZ	Crossed Roller Mini Aluminum Thin Type Stage Z Axis 60 x 60 mm Table with 13mm Travel	Click to Get a Quote
