Manual Thin Single-axis Positioning Stage
MXL90-AC

Home > Manual Stages > Crossed Roller Stages > Thin Stages

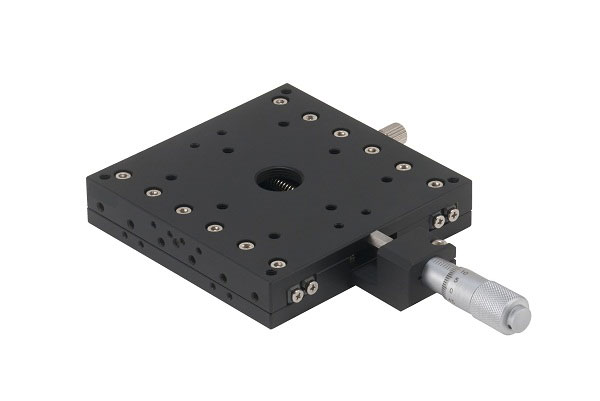

Manual Thin Single-axis Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 90 x 90 mm has a body weight of 0.45 kg.

It provides central type of feed position.

The maximum load of this super thin table is 8 kg.

The stroke is +/- 7.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MXL90-AC
90 mm by 90 mm X Central +/-7.5 mm 3 micron 8 0.45 Aluminum Alloy Black anodized 10 micron

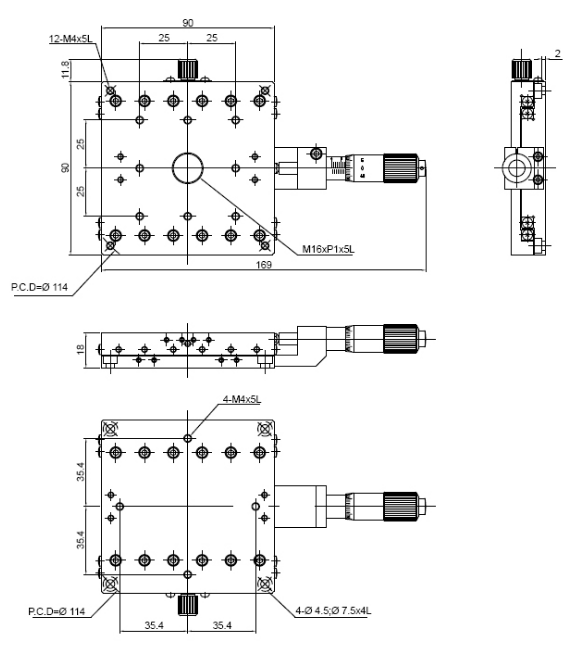

Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MXL90-AC	Crossed Roller AL Thin Type Mini Stage X Axis 90x90 mm Table with 15 mm Travel	Click to Get a Quote

Manual Thin Single-axis Positioning Stage MXL90-AC

Manual Thin Single-axis Positioning Stage
MXL90-AC
