Manual Thin Dual-axis Positioning Stage
MYL125-AS

Home > Manual Stages > Crossed Roller Stages > Thin Stages

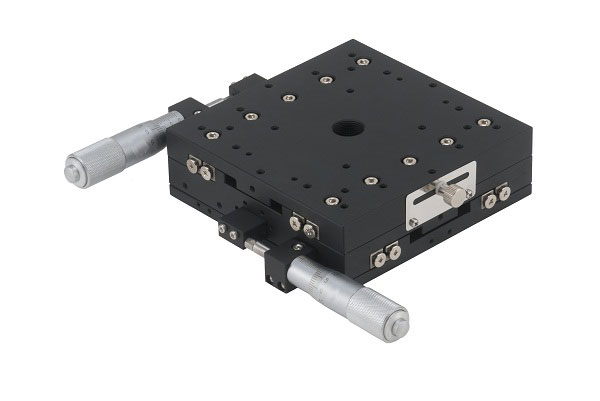

Manual Thin Single-axis Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 125 x 125 mm has a body weight of 2 kg.

It provides side type of feed position.

The maximum load of this super thin table is 15 kg.

The stroke is +/- 12.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MYL125-AS
125 mm by 125 mm XY Side +/-12.5 mm 3 micron 15 2 Aluminum Alloy Black anodized 10 micron

Mechanical Drawing

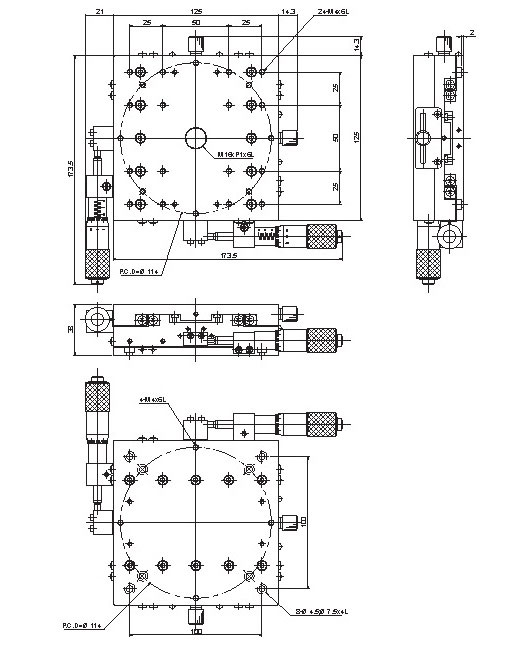

Manual Thin Single-axis Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MYL125-AS	Thin Crossed Roller Stage Side Drive XY-Axis 125x125 mm Size 13mm Travel 0.01 mm Precision	Click to Get a Quote

Manual Thin Dual-axis Positioning Stage MYL125-AS

Manual Thin Dual-axis Positioning Stage
MYL125-AS
