Manual Alpha-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-axis Goniometer Stages

Manual Alpha-axis Goniometer Stage Picture

MXG4-50CE, alpha-axis manual goniometers are made of brass alloy with an elegant black fluororesin coating.

The bench size is 40 X 40 mm has a body weight of 0.3 kg.

The drive mechanism is worm and worm gear. The worm gear ratios is ≈28'11'', per revolution of knob.

They provide +/- 8 degrees of rotation.

The maximum load of this goniometer table is 3.0 kg.

The calibrated indicator shows of the angle of rotation.

The height of rotations are 50 mm.

Specifications

Unit: mm

Part No.. Table
Size Axis Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Travel Distance per
Rev. of Knob Minimum reading
indicator Height of
rotational center

MXG4-50CE
40 by 40 α 3 0.3 Brass alloy Black Fluororesin +/- 8° ≈28'11'' 0.1° / indicator 50

MXG4-68CE
40 by 40 α 3 0.3 Brass alloy Black Fluororesin +/- 6° ≈21'45'' 0.1° / indicator 68

MXG4-86CE
40 by 40 α 3 0.3 Brass alloy Black Fluororesin +/- 5° ≈17'43' 0.1° / indicator 86

Mechanical Drawing

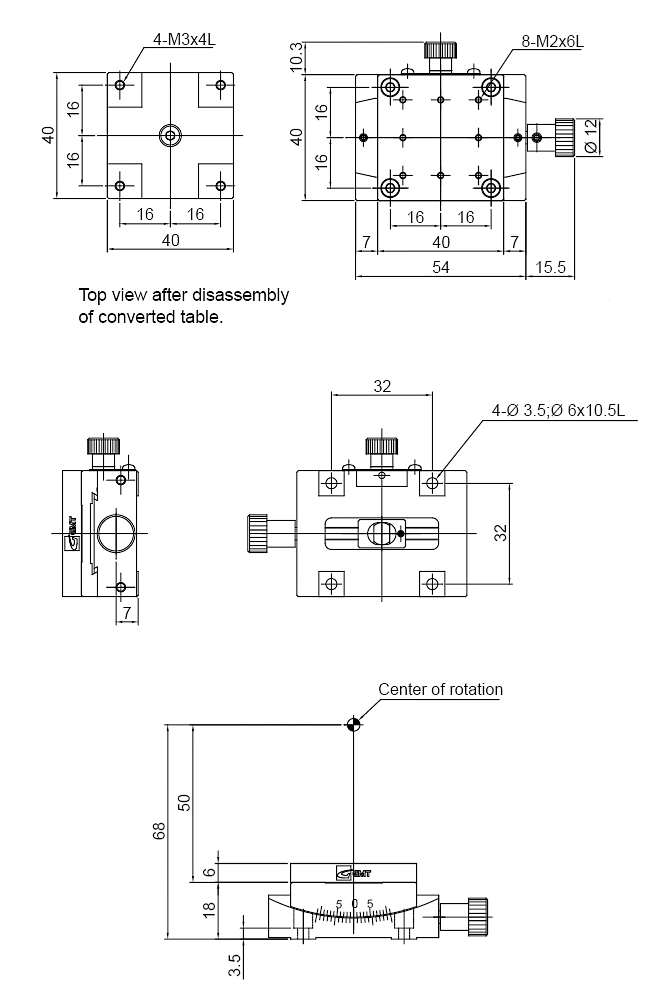

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MXG4-50CE

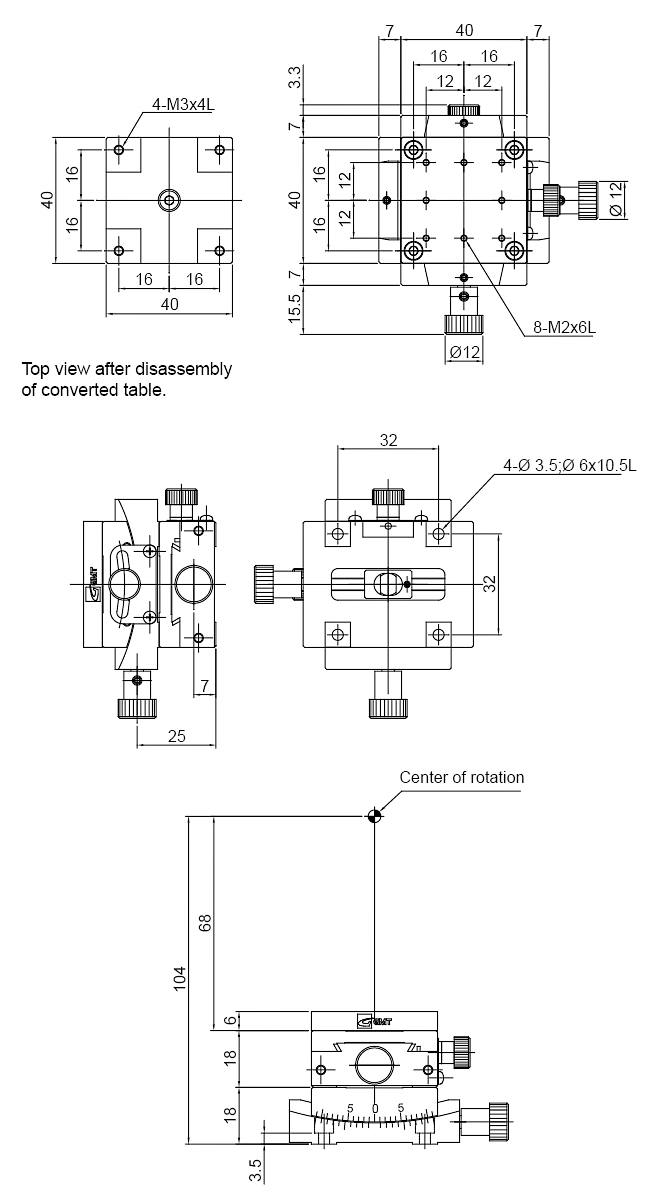

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MXG4-68CE

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MXG4-50CE

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MYG4-68CE

Ordering Information

Part No.	Description	Amount
MXG4-50CE	Manual Alpha-axis Goniometer Stage, Range of Travel +/- 8°	Click to Get a Quote
MXG4-68CE	Manual Alpha-axis Goniometer Stage, Range of Travel +/- 6°	Click to Get a Quote
MXG4-86CE	Manual Alpha-axis Goniometer Stage, Range of Travel +/- 5°	Click to Get a Quote
