Manual Alpha-Beta-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-Beta-axis Goniometer Stages

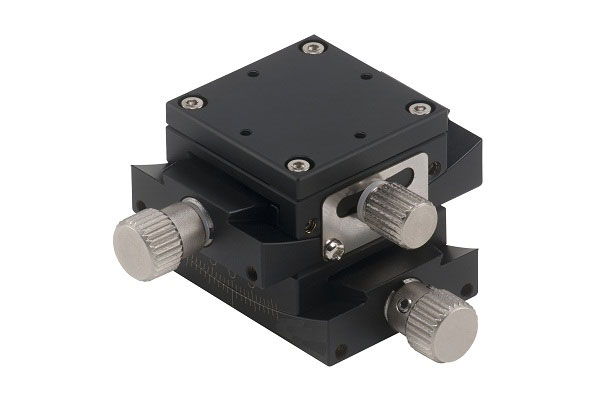

Manual Alpha-Beta-axis Goniometer Stage Picture

MYG3-30CE manual goniometer is made of brass alloy with an elegant black fluororesin coating.

The bench size is 30 X 30 mm has a body weight of 0.2 kg.

The drive mechanism is worm and worm gear. The worm gear ratios is
Upper axis ≈44'39'', Lower axis ≈33'23'' per revolution of knob.

It provides Upper axis +/- 8° and Lower axis +/- 6° of rotation.

The maximum load of this goniometer table is 1.5 kg.

The calibrated indicator shows of the angle of rotation.

The height of rotations is 30 mm.

Specifications

Unit: mm
Part No.. Table
Size
Axis Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator
Height of
rotational center

 MYG3-30CE

30 by 30 αβ 1.5 0.2 Brass Alloy Black Fluororesin Upper axis +/- 8°
Lower axis +/- 6°
Upper axis ≈44'39'' Lower axis ≈33'23'' 0.1° / indicator 30

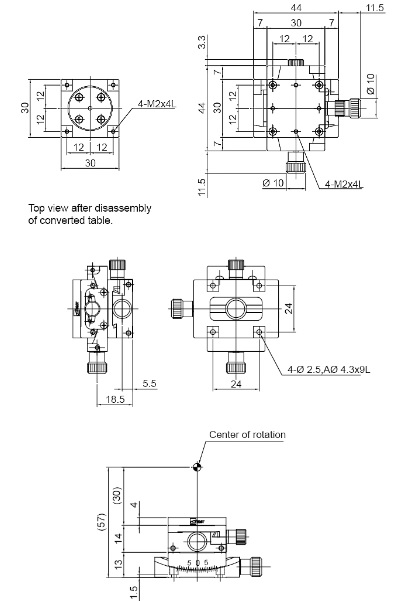

Mechanical Drawing

Manual Alpha-Beta-axis Goniometer Stage Mechanical Drawing
MXG3-30CE

 Ordering Information

Part No. Description Amount
MYG3-30CE Manual Stage, Goniometer Stage, Alpha-Beta-axis Goniometer Stage, Range of Travel Upper axis +/- 8°, Lower axis +/- 6° Click to Get a Quote
