Manual Alpha-Beta-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-Beta-axis Goniometer Stages

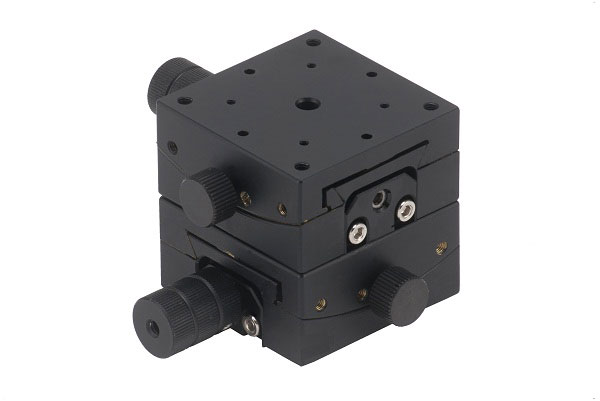

Manual Alpha-Beta-axis Goniometer Stage Picture

MYG4-40CS manual goniometer is made of brass alloy with an elegant black fluororesin coating.

The bench size is 40 X 40 mm has a body weight of 0.48 kg.

The drive mechanism is worm and worm gear. The worm gear ratiosis Upper axis ≈1.89� Lower axis ≈1.33� per revolution of knob.

It provides Upper axis +/-15� and Lower axis +/-10� of rotation.

The maximum load of this goniometer table is 2.7 kg.

The calibrated indicator shows of the angle of rotation.

The height of rotations is 40 mm.

Specifications

Unit: mm

Part No.. Table
Size Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Travel Distance per
Rev. of Knob Minimum reading
indicator Height of
rotational center

MYG4-40CS
40 by 40 2.7 0.48 Brass alloy Black Fluororesin Upper axis: +/-15�
Lower +/-10� Upper axis ≈1.89�
Lower axis ≈1.33� 1�/indicator 40

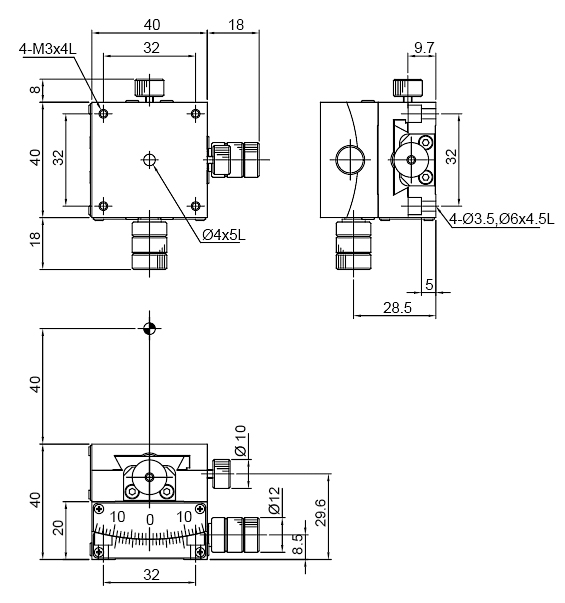

Manual Alpha-Beta-axis Goniometer Stage Mechanical Drawing
MYG4-40CS

Ordering Information

Part No.	Description	Amount
MYG4-40CS	Manual Stage, Goniometer Stage, Alpha-Beta-axis Goniometer Stage, Range of Travel Upper axis +/- 15�, Lower axis +/- 10�	Click to Get a Quote
