Motorized Goniometer Stage
|
|
Home
>
Motorized Goniometer Stages
|
|

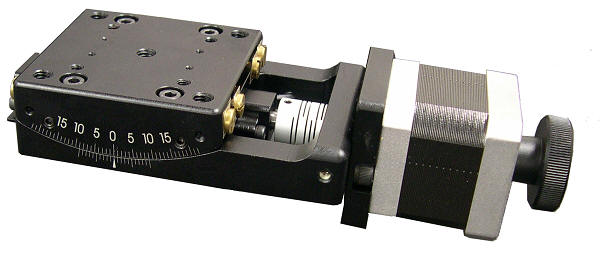

This motorized goniometer is made of aluminum alloy with an elegant black anodized surface.
The bench size is 65 X 65 mm and has a body weight of 0.75 kg.
The drive mechanism is worm and worm gear. The worm gear ratio is 1 Deg (stage) : 252 Deg (motor).
It provides +/-15 Deg of rotation at a maximum speed of 10 degrees per second.
The maximum load of this goniometer table is 5 kg.
The calibrated indicator shows the angle of rotation.
The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.
T
his stage requires a
Motion Controller
that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.
Video Demonstration
|
|
Specifications
|
Type
|
AK110-15
|
|
Range of Travel |
+/-15 Deg. |
|
Table Size |
65 mm x65 mm
|
|
Gear Ratio |
1 Deg
(stage) :
2
52 Deg
(motor)
|
|
Height of Rotation Stage |
50 mm+/-0.2 mm |
|
Drive Mechanism |
Worm Gear |
|
Travel Guide
|
Crossed-roller Guide |
|
Stepper Motor
|
|
|
|
Typical Phase Resistance
|
3.8 Ohms, Bi-directional
|
| Typical Phase Current |
1 Amp |
|
DB-9 Male Connector
|
|
Pin Assignment and Description
|
|
1
|
+5 VDC
|
|
2
|
CCW Limit Switch
, Open Collector, Normally Open, Needs Pull up Resistor
|
|
3
|
CW Limit Switch, Open Collector
, Normally Open, Needs Pull up Resistor
|
|
4
|
Common
|
|
5
|
Not Connected
|
|
6
|
Stepper Motor Phase A+
|
|
7
|
Stepper Motor Phase A-
|
|
8
|
Stepper Motor Phase B+
|
|
9
|
Stepper Motor Phase B-
|
|
|
|
Base Material
|
Aluminum Alloy |
|
Surface Treatment
|
Black Anodized |
|
Load Capacity |
5 kg
|
|
Weight
|
0.75 kg
|
|
Resolution |
Stepper Motor Driver or Servo Motor Optical Encoder Dependent
approximately 0.0007 Degrees (10 micro-steps per step or 500 Line per Revolution Encoder)
|
|
Height of Rotation |
50 mm |
|
Maximum Speed with Stepper Motor |
10 Deg/sec |
|
Maximum Speed with DC Motor
|
45
Deg/sec
|
|
Typical Repeatability |
+/- 0.01 degrees |
|
Typical Positioning Accuracy |
0.05 degrees |
|
|

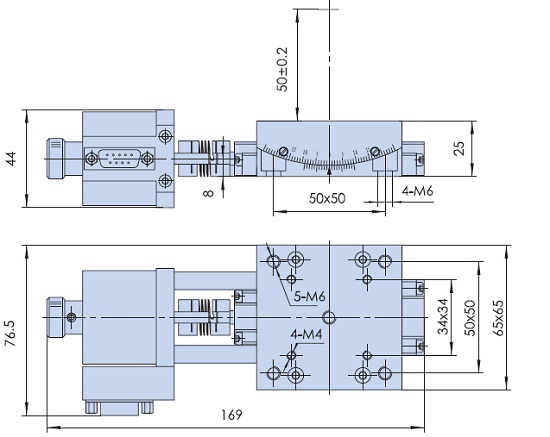

Stepper Motor Driven Mechanical Drawing
|
|
|
Ordering Information
|
Part No.
|
Description
|
Amount
|
|
AK110-15-01
|
Stepper Motor Driven Goniometer Stage, Table Size 65x65 mm
|
Click to Get a Quote
|
|
AK110-15-02
|
Three Phase Brushless Servo Motor with Quadrature Incremental
Optical Encoder Driven Goniometer Stage, Table Size 65x65 mm
|
Click to Get a Quote
|
|
AK110-15-03
|
DC
Servo Motor with Quadrature Incremental
Optical Encoder Driven Goniometer Stage, Table Size 65x65 mm
|
Click to Get a Quote
|
|
AK110-15-04
|
Stepper Motor Driven Goniometer Stage
with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the
back of the Stepper Motor
, Table Size 65x65 mm
|
Click to Get a Quote
|
|
