Motorized Goniometer Stage

Home   > Motorized Goniometer Stages

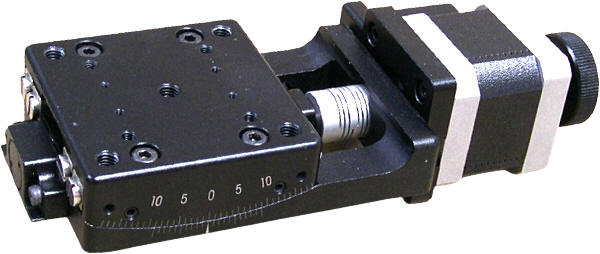

Motorized Goniometer Table, Table Size: 65 mm × 65 mm, Range of Travel: +/- 10 Degrees

This motorized goniometer is made of aluminum alloy with an elegant black anodized surface.

The bench size is 65 X 65 mm and has a body weight of 0.75  kg.

The drive mechanism is worm and worm gear. The worm gear ratio is 1° (stage) : 352° (motor).

It provides +/-10° of rotation at a maximum speed of 14° per second with stepper motor.

The maximum load of this goniometer table is 5  kg.

This goniometer stage is also available with a Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder and optical encoder.

The calibrated indicator shows the angle of rotation.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

T his stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.


Video Demonstration

Specifications

Type

AK110-10

Range of Travel

+/-10°

Table Size 65 mm x65 mm
Gear Ratio 1° (stage) : 352° (motor)



Height of Rotation Stage

75 mm +/-0.2 mm

Drive Mechanism Worm Gear
Travel Guide Crossed-roller Guide
Stepper Motor

DB9 Male pinout

Typical Phase Resistance 3.8 Ohms,  Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Pin Assignment and Description

1

+5 VDC

2

CCW Limit Switch , Open Collector, Normally Open, Needs Pull up Resistor

3

CW Limit Switch, Open Collector , Normally Open, Needs Pull up Resistor

4

Common

5

Not Connected

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-



Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 5 kg
Weight 0.75 kg
Resolution Stepper Motor Driver or Servo Motor Optical Encoder Dependent

approximately 0.0005 degrees  (10 micro-steps per step or 500 Line per Revolution Encoder)

Rotation Center Deflection Accuracy 0.03 mm
Maximum Speed with Stepper Motor 10 °/sec
Maximum Speed with DC Motor 45 °/sec
Typical Repeatability +/- 0.01 degrees
Typical Positioning Accuracy 0.05 degrees

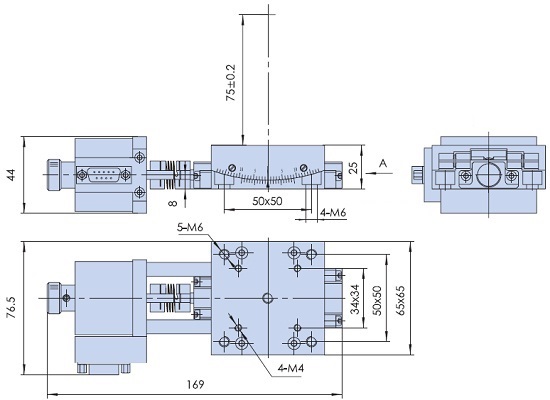

Stepper Motor Driven Mechanical Drawing



Mechanical Drawing of Motorized Goniometer Table, Table Size: 65 mm × 65 mm

  Ordering Information

Part No. Description Amount
AK110-10-01 Stepper Motor Driven Goniometer Stage, Table Size 65x65 mm Click to Get a Quote
AK110-10-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Goniometer Stage, Table Size 65x65 mm Click to Get a Quote
AK110-10-03 DC Servo Motor with Quadrature Incremental Optical Encoder Driven Goniometer Stage, Table Size 65x65 mm Click to Get a Quote
AK110-10-04 Stepper Motor Driven Goniometer Stage with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor , Table Size 65x65 mm Click to Get a Quote
