Motorized Goniometer Stage
|
|
Home >
Motorized Goniometer
Stages |
|

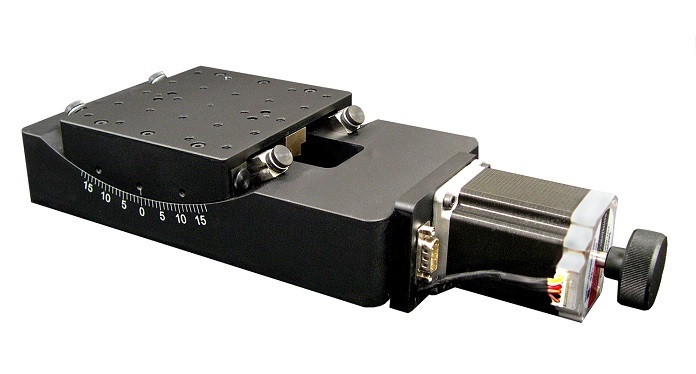

This
motorized
goniometer
is
made
of
aluminum
alloy
with
an
black
anodized
surface.
The
bench
size
is
120
mm X
130
mm
and
has
a
body
weight
of 9
kg.
The
drive
mechanism
is
worm
and
worm
gear.
The
worm
gear
ratio
is
1°
(stage)
:
304°
(motor).
It
provides
+/-15°
of
rotation
at a
maximum
speed
of
10°
per
second.
The
maximum
load
of
this
goniometer
table
is
15
kg.
The
calibrated
indicator
shows
the
angle
of
rotation.
The
knob
mounted
on
the
motor
allows
for
manual
adjustment.
This
knob
may
be
replaced
with
an
optical
encoder
for
precision
position
verification.
This
stage
requires
a
Motion
Controller
that
can
be
ordered
as a
complete
plug-and-play
system
with
RS-232,
USB,
joystick,
trackball,
and
keypad
control.
Video
Example |
|
Specifications
|
Type |
AK140-15 |
|
Range of Travel |
+/-15° |
|
Table Size |
120 mm x130 mm |
|
Gear Ratio |
1° (stage) : 304° (motor) |
|
Height of Rotation Stage |
160 mm+/-0.2 mm |
|
Drive Mechanism |
Worm Gear |
|
Travel Guide |
Crossed-roller Guide |
|
Stepper Motor |
|
|
|
Typical Phase Resistance
|
2.5
Ohms, Bi-directional |
| Typical Phase Current |
1 Amp |
|
DB-9 Male Connector |
|
Pin Assignment and Description |
|
1,2,3,4,5 |
|
|
6 |
Stepper Motor Phase A+ |
| 7 |
Stepper Motor Phase A- |
| 8 |
Stepper Motor Phase B+ |
| 9 |
Stepper Motor Phase B- |
|
|
Base Material |
Aluminum Alloy |
|
Surface Treatment |
Black Anodized |
|
Load Capacity |
15 kg |
|
Weight |
5.9 kg |
|
|
|
|
Rotation Center Deflection Accuracy |
0.2 mm |
|
Maximum Speed |
10°/ sec |
|
Typical Repeatability |
+/-3‘ |
|
Typical Positioning Accuracy |
+/-8‘ |
|
Typical Backlash |
+/-3‘ |
|
|
Mechanical
Drawing
|
|
|
Ordering
Information
|
Part No. |
Description |
Amount |
|
AK140-15-01 |
Stepper Motor Driven Goniometer Stage,
Table Size 120 x 130 mm |
Click to Get a Quote |
|
AK140-15-02 |
Three Phase Brushless Servo Motor with Quadrature Incremental
Optical Encoder Driven Goniometer Stage,
Table Size 120 x 130 mm |
Click to Get a Quote |
|
