Motorized Goniometer Stage

Home > Motorized Goniometer Stages

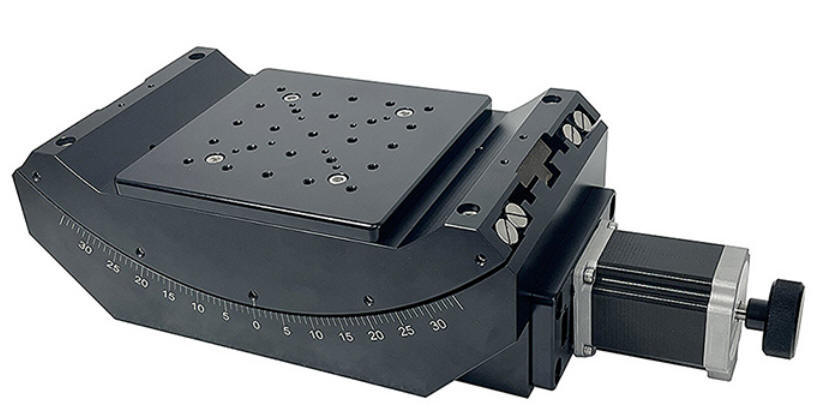

Motorized Goniometer Stage, Table Size 160 mm x 160 mm, Load Capacity 30 kg

This motorized goniometer is made of aluminum alloy with an elegant black anodized surface.

The bench size is 160 X 427 mm and has a body weight of 14  kg.

The drive mechanism is worm and worm gear. The worm gear ratio is 1 (stage) : 400 (motor).

It provides +/-30 of rotation at a maximum speed of 10 per second.

The maximum load of this goniometer table is 30 kg.

The calibrated indicator shows the angle of rotation.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.

Specifications

Type

AK160-30

Range of Travel

+/-30

Table Size 160 mm x 160 mm
Gear Ratio 1 (stage) : 400 (motor)
Height of Rotation Stage

136 mm

Drive Mechanism Worm Gear
Travel Guide Crossed-roller Guide
Stepper Motor


Typical Phase Resistance 2.0 Ohms,  Bi-directional
Typical Phase Current 2.0 Amp
DB-9 Male Connector
Pin Assignment and Description

1

+5 VDC

2

CCW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

3

CW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

4

Common

5

Not Connected

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-



Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 30 kg
Weight 14 kg
Height of Rotation 139 mm
Maximum Speed with Stepper Motor 10 /sec
Maximum Speed with DC Motor 45 /sec

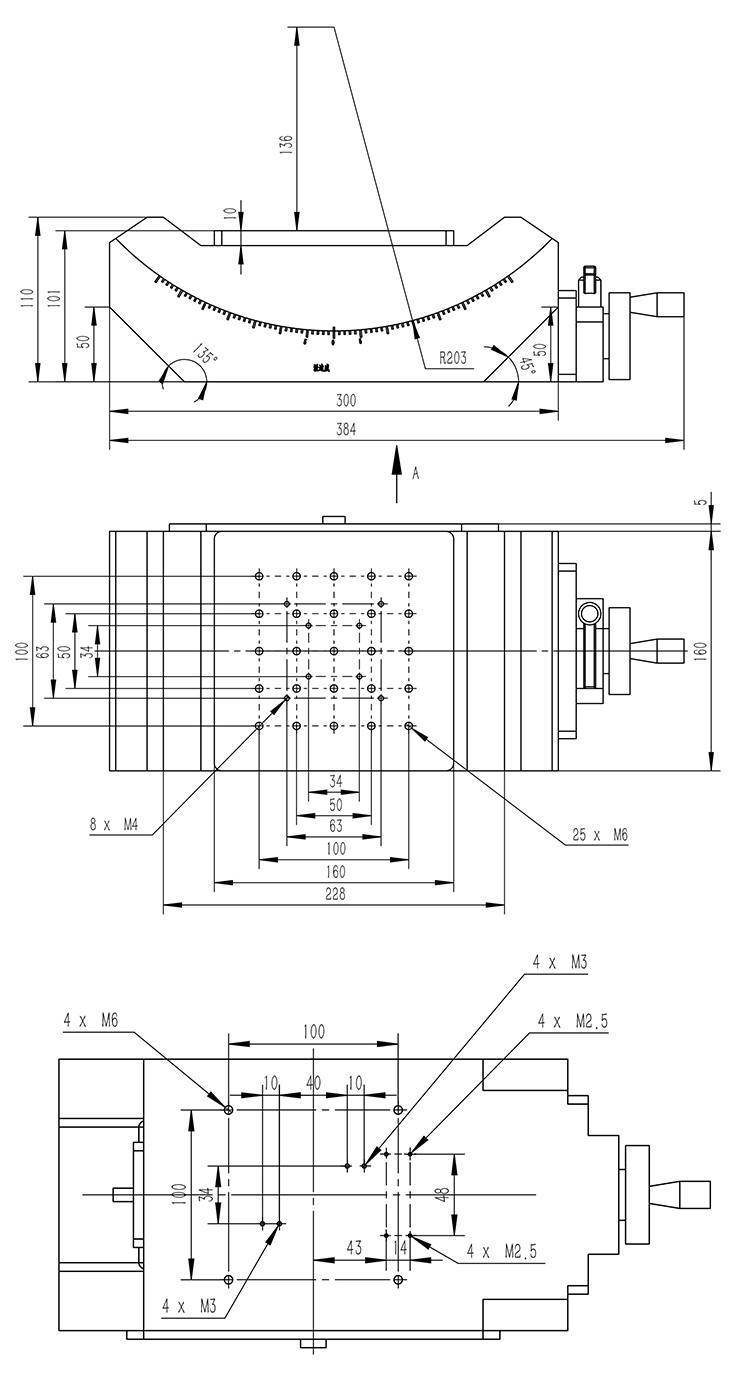

Stepper Motor Driven Mechanical Drawing




 Ordering Information

Part No. Description Amount
AK160-30-01 Stepper Motor Driven Goniometer Stage, Table Size 160 mm x 160 mm, Load Capacity 30 kg Click to Get a Quote
AK160-30-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Goniometer Stage, Table Size 160 mm x 160 mm, Load Capacity 30 kg Click to Get a Quote
AK160-30-03 DC Servo Motor with Quadrature Incremental Optical Encoder Driven Goniometer Stage, Table Size 160 mm x 160 mm, Load Capacity 30 kg Click to Get a Quote
AK160-30-04 Stepper Motor Driven Goniometer Stage with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor, Table Size 160 mm x 160 mm, Load Capacity 30 kg Click to Get a Quote
