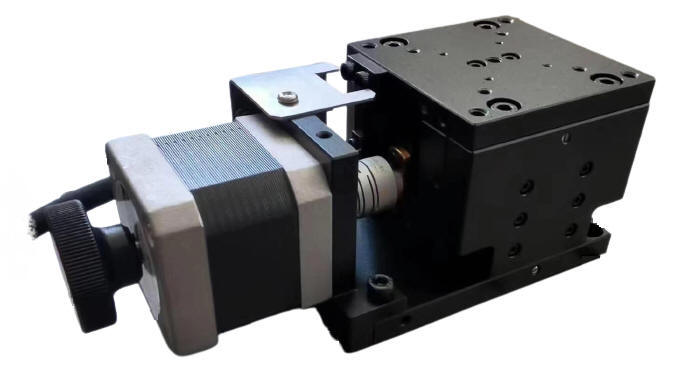

Motorized Linear Vertical Stage

Home > Motorized Vertical Single-axis Stages

Type

AT-GD75

Structure Description

Range of Travel

15 mm

Table Size 60 mm x 60 mm
Actuator Type Lead Screw
Travel Guide

Crossed- Roller Bearing

Motor

Two-Phase Stepper Motor (1.8)
Two-Phase Stepper Motor
Typical Phase Current 1 Amp

Pin Assignment and Description
1 +5 VDC for the Limit Sensors
2

CCW Limit Switch
The table moves away from the motor
The knob turns counter clockwise
Open Collector
Normally Open
Needs Pull up Resistor (typically 1000 Ohms)

3

CW Limit Switch
The table moves towards the motor
The knob turns clockwise
Open Collector
Normally Open
Needs Pull up Resistor (typically 1000 Ohms)

4 Return for+5 VDC
5 Not Connected
6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 2 kg
Maximum Velocity with Stepper Motor 5 mm/sec
Transmission Ratio 5 micron (Full Step); 0.25  micron (20 micro-steps per step)
Weight 1.5 kg

Typical Accuracy Description

Repeatability Better than 20 microns

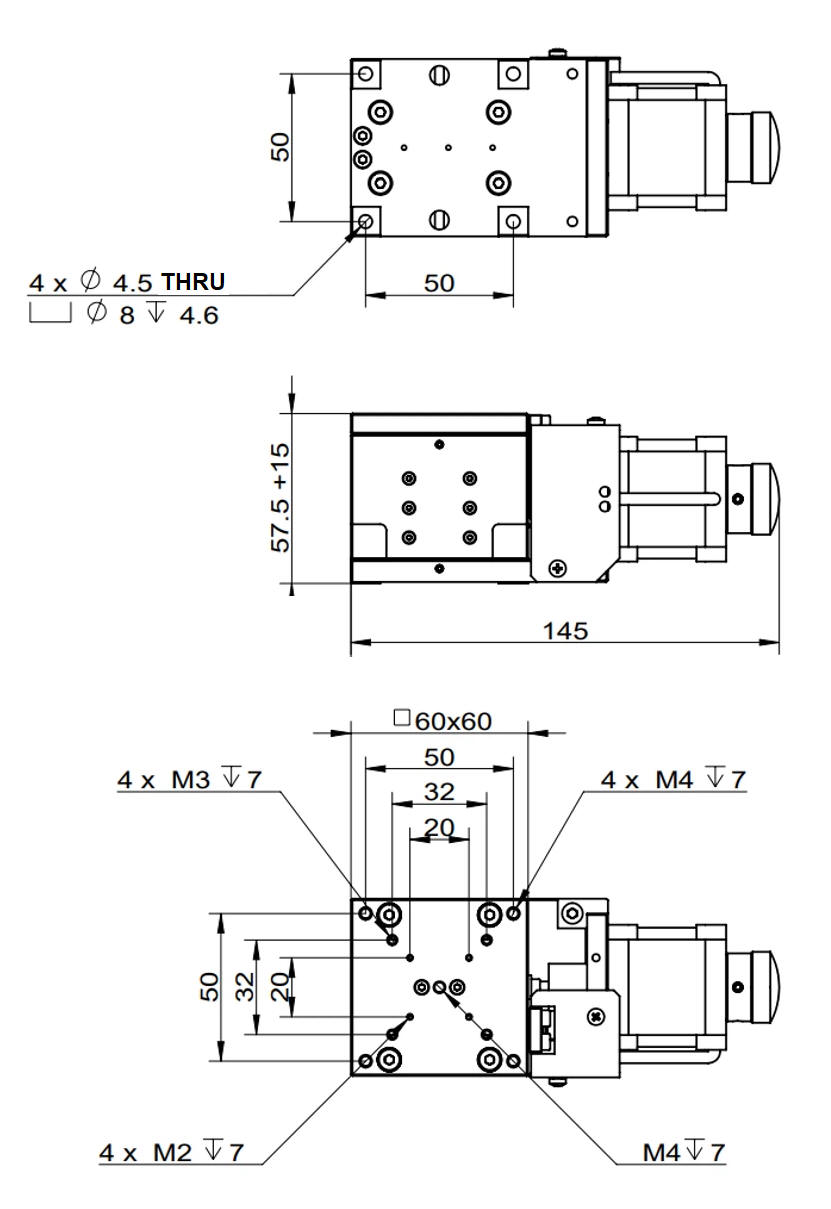

Stepper Motor Driven Mechanical Drawing


 Ordering Information

Part No. Description Amount
AT-GD75-01 Stepper Motor Driven Linear Single-axis Vertical Stage, Travel  : 15 mm Click to Get a Quote
AT-GD75-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Single-axis Vertical Stage, Travel  : 15 mm Click to Get a Quote
AT-GD75-03 DC Brush Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Single-axis Vertical Stage, Travel  : 15 mm Click to Get a Quote
AT-GD75-04 Stepper Motor Driven Linear Single-axis Vertical Stage with 500 Cycle per Revolution Quadrature Optical Encoder, Travel  : 15 mm Click to Get a Quote
