Motorized Linear Vertical Stage

Home   > Motorized Vertical Single-axis Stages

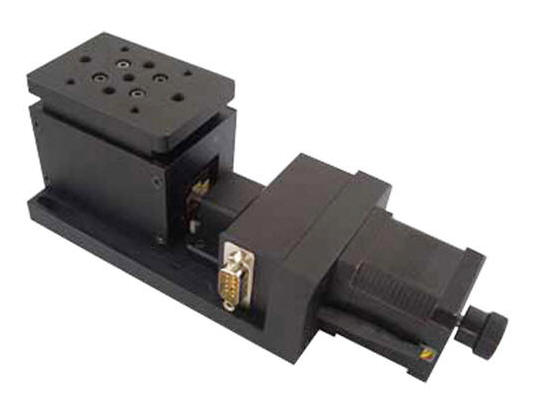

Motorized Vertical Stage, Range of Travel 10 mm

Type

AT10-10

Structure Description

Range of Travel

10 mm

Table Size 50 mm x 74 mm
Actuator Type Lead Screw
Travel Guide

Crossed- Roller Bearing

Motor

DB9 Male pinout

Two-Phase Stepper Motor (1.8°)
Two-Phase Stepper Motor
Typical Phase Resistance 3.8 Ohms, Bi-directional
Typical Phase Current 1 Amp

Pin Assignment and Description
1 +5 VDC for the Limit Sensors
2

CCW Limit Switch
The table moves away from the motor
The knob turns counter clockwise
Open Collector
Normally Open
Needs Pull up Resistor (typically 1000 Ohms)

3

CW Limit Switch
The table moves towards the motor
The knob turns clockwise
Open Collector
Normally Open
Needs Pull up Resistor (typically 1000 Ohms)

4 Return for+5 VDC
5 Not Connected
6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 10 kg
Maximum Velocity 5 mm/sec
Transmission Ratio 5 micron (Full Step) ; 0.25  micron (20 micro-steps per step)
Weight 1.5 kg

Typical Accuracy Description

Repeatability 7 microns

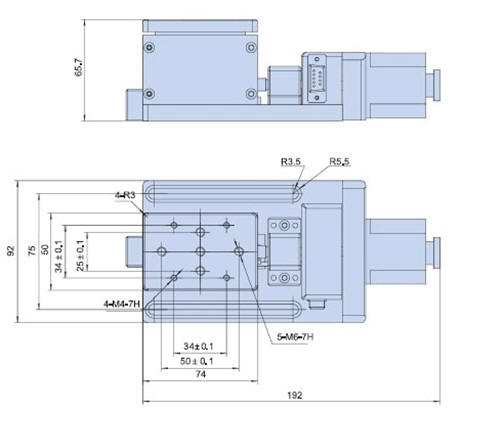

Stepper Motor Driven Mechanical Drawing

Mechanical Drawing of Motorized Linear Vertical Stage,Range of Travel 10 mm

  Ordering Information

Part No. Description Amount
AT10-10-01 Stepper Motor Driven Linear Single-axis Vertical Stage, Travel  : 10 mm Click to Get a Quote
AT10-10-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Single-axis Vertical Stage, Travel  : 10 mm Click to Get a Quote
AT10-10-03 DC Brush Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Single-axis Vertical Stage, Travel  : 10 mm Click to Get a Quote
AT10-10-04 Stepper Motor Driven Linear Single-axis Vertical Stage with 500 Cycle per Revolution Quadrature Optical Encoder, Travel  : 10 mm Click to Get a Quote
