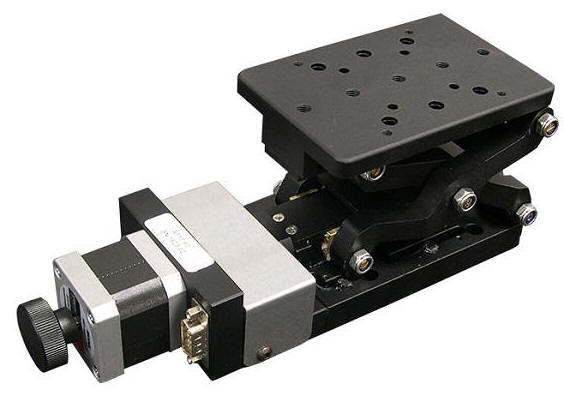

Stepper Motor Driven Vertical Stage

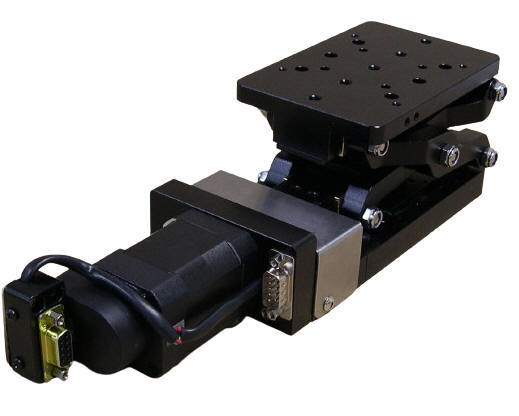

Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Vertical Stage

The AT10-60 is a high resolution, low profile, high load vertical lift stage that can be easily integrated into almost any application.

The large 120 mm x 80 mm (4.724 in. 3.149 in.) drilled and tapped platform has a vertical travel of 60 mm (2.362 in.). The twin lead (right and left hand thread) precision ground screw provide smooth, flat (parallel to mounting surface), vertical motion, with high resolution and repeatability.

Applications for the AT10-60 vertical lift stage include: testing, inspection, assembly, sampling, laser drilling and machining in a broad range of industrial, medical, semiconductor, and research facilities.

The AT10-60 low profile vertical stage is constructed of black-anodized aluminum alloy and weighs just 1.8 kg (3.96 lbs). The powerful 2-phase NEMA 17 Stepper and inclined plane and scissor lift concept offers higher load capacity to 5 kg (22 lbs) compared to vertically mounted stages, and without the concern for cantilevered effects (loss of parallelism), additionally, the moving platform has access from all four sides, and the base plate has easy to access holes for mounting. The increase in height is a
non-linear function of rotation of the motor.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.


Video Demonstration


Specifications
Type

AT10-60

Structure Description

Range of Travel

60 mm +/- 2mm

Table Size 120 mm x 80 mm
Actuator Type Lead Screw
Travel Guide

Slide Rail

Two Phase Stepper Motor

DB9 Male pinout

Two-Phase Stepper Motor (1.8°)
Typical Phase Resistance 3.8 Ohms, Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Pin Assignment and Description

1

+5 VDC

2

Low End Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

3

High End Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

4

Common

5

Not Connected

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Typical Repeatability +/- 5 microns
Typical Positional Accuracy 15 microns
Load Capacity 5.0 kg
Weight 1.8 kg

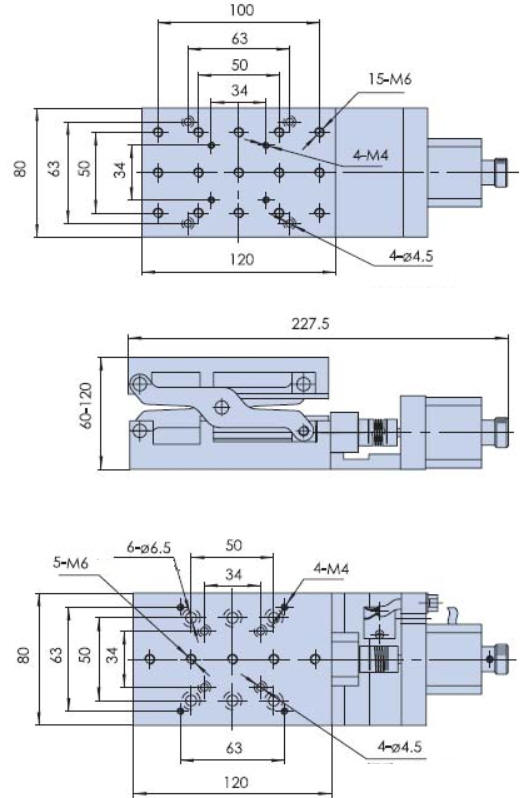

Stepper Motor Driven Mechanical Drawing

Mechanical Drawing of Motorized Linear Vertical Stage, Range of Travel 60 mm

  Ordering Information

Part No. Description Amount
AT10-60-01 Stepper Motor Driven Vertical Stage, Range of Travel 60 mm, Table Size: 120 mm x 80 mm Click to Get a Quote
AT10-60-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Vertical Stage, Range of Travel 60 mm, Table Size: 120 mm x 80 mm Click to Get a Quote
AT10-60-03 DC Brush Servo Motor with Quadrature Incremental Optical Encoder Driven Vertical Stage, Range of Travel 60 mm, Table Size: 120 mm x 80 mm Click to Get a Quote
AT10-60-04 Stepper Motor Driven Vertical Stage with 500 Cycle per Revolution Quadrature Optical Encoder,  Range of Travel 60 mm, Table Size: 120 mm x 80 mm Click to Get a Quote
