Motorized Linear Vertical Stage
|
|
Home >
Motorized Vertical Single-axis Stages |
|
Applications for the AT20-200 vertical lift stage include:
Testing, inspection, assembly, sampling, laser drilling and machining in a broad
range of industrial, medical, semiconductor, and research facilities.

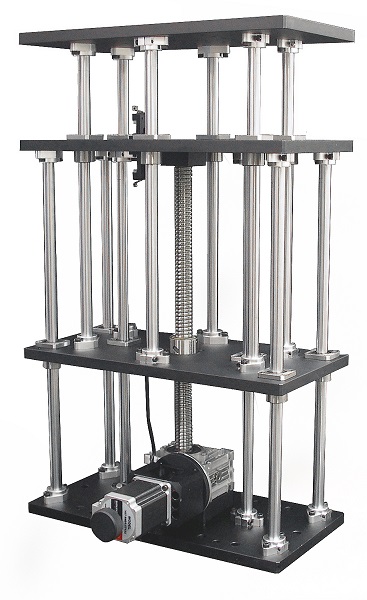

Applications for the AT20-200 motorized Vertical Lift Stage include: Positioning of Flasks, stirrers, hotplates, and other lab equipment, testing, inspection, assembly, sampling, laser drilling and machining in a broad range of industrial, medical, semiconductor, and research applications.
It is constructed of black-anodized aluminum alloy and steel
shafting. A powerful two phase NEMA stepper motor and precision ground lead screw offers a high load capacity to 50kg without the concern for cantilevered effects (loss of parallelism), additionally, the stage has access from all four sides. The limit switches prevent over travel, a hand knob on the extended motor shaft is for manual adjustments, and the large base plate has easy access to mounting holes.
This stage requires a
Motion Controller
that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control. |
|

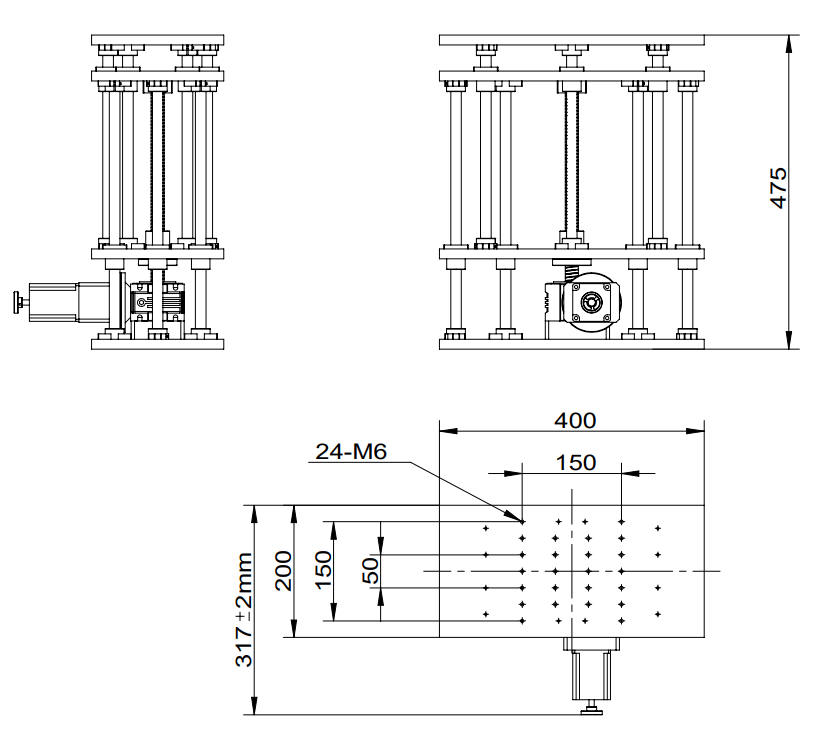

Specifications
|
| Type |
AT20-200 |
|
Structure
Description |
Range of Travel |
200 mm |
| Table Size |
200 mm x 400 mm |
| Actuator Type |
Lead Screw |
| Travel Guide |
Slide Rail |
| Two Phase Stepper Motor
 |
|
Two-Phase Stepper Motor |
|
Typical Phase Resistance
|
3.8 Ohms, Bi-directional |
| Typical Phase Current |
1 Amp |
| |
|
Pin Assignment and Description |
| 1 |
Not Connected |
| 2 |
Upper Limit Switch, Normally Open |
| 3 |
Lower Limit Switch, Normally Open |
| 4 |
Ground |
|
5 |
Not Connected |
|
6 |
Stepper Motor Phase A+ |
| 7 |
Stepper Motor Phase A- |
| 8 |
Stepper Motor Phase B+ |
| 9 |
Stepper Motor Phase B- |
|
| Base Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Load Capacity |
50 kg |
| Weight |
|
|
Maximum Speed with Stepper Motor |
4 mm / sec |
|
Maximum Speed with Servo Motor |
20 mm / sec |
|
Transmission
Ratio |
250 microns per motor turn |
|
Typical Accuracy
Description
|
| Repeatability |
+/- 5 microns |
| Positional Accuracy |
15 microns |
|
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
AT20-200-01 |
Stepper Motor Driven
Linear Vertical Stage, Load Capacity:
50 kg, Range of Travel: 200 mm |
Click to Get a Quote |
|
AT20-200-02 |
Three Phase Brushless Servo Motor
with Quadrature Incremental Optical Encoder Driven
Linear Vertical Stage, Load Capacity
50 kg,
Range of Travel: 200 mm |
Click to Get a Quote |
|
AT20-200-03 |
DC Brush
Servo Motor
with Quadrature Incremental Optical Encoder Driven
Linear Vertical Stage, Load Capacity
50 kg,
Range of Travel: 200 mm |
Click to Get a Quote |
|
AT20-200-04 |
Stepper Motor Driven
Linear Vertical Stage
with 500 Cycle per Revolution Quadrature
Optical Encoder, Load Capacity:
50 kg, Range of Travel: 200 mm |
Click to Get a Quote |
|
