Motorized Linear Vertical Stage

Home   > Motorized Vertical Single-axis Stages

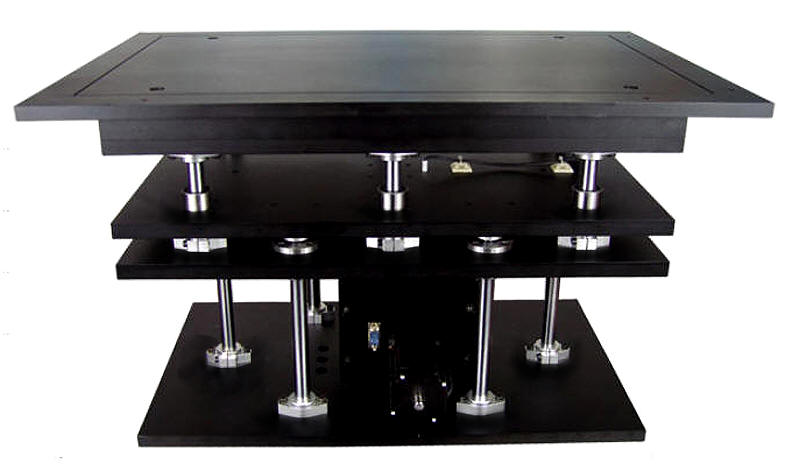

The AT-30 series high precision vertical lift stages are capable of elevating heavy loads by 30 mm (1.18 in.) in ultra-low profile design.

The rigid box construction of the moving component of the elevator stage travels on six slide rails assuring smooth vertical travel and parallelism of the table and mounting surface at all times.

Powered by a two-phase stepper motor the vertical lift stage features: 3.315 microns (full-Step) resolution, 5 microns repeatability, and 15 microns positional accuracy.


Motor options include two-phase stepper motor, single phase DC servo motor for low cost closed loop operation, and a 3-phase brushless servo motor for the highest precision and travel speeds.


This high load, 100 kg (220.5 lbs), vertical lift stage can be easily integrated into almost any application. The large 500 mm x 300 mm (19.685 in. 11.811in.) stage is ideal for: Manufacturing and assembly, positioning of lab equipment, testing, inspection, sampling, and laser drilling and machining in a broad range of industrial, medical, semiconductor, and research applications.

The height of AT20-30 Motorized Vertical Lift Stage at lowered position is just 269 mm  (10.591 in.). Constructed with black-anodized aluminum alloy and steel shafting, it weighs just 35 kg (77.2. lbs).  The centrally mounted precision ground lead screw and six vertical rail systems raise and lower the stage without concern for cantilevered effects and loss of parallelism. Additionally, the stage has access from all four sides. The limit switches prevent over traveling, and the large base plate has easy access to mounting holes.

The AT20-30 Vertical Lift Stage options include: Stepper motor with optical encoder for position verification, DC servo motor or three-phase brushless servo motor for closed loop operation.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.

Specifications
Type

AT20-30

Structure Description

Range of Travel

30 mm

Table Size 500 mm x 300 mm
Actuator Type Lead Screw
Travel Guide

Slide Rail

Two Phase Stepper Motor

DB9 Male pinout

Typical Phase Resistance 2.3 Ohms, Bi-directional
Typical Phase Current 2 Amp
DB-9 Male Connector
Pin Assignment and Description
1 Not Connected
2 Upper Limit Switch, Normally Open
3 Lower Limit Switch, Normally Open
4 Ground
5 Not Connected
6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 100 kg
Weight 35 kg

Typical Accuracy Description

Resolution 0.2 microns (Full Step)
Transmission Ratio 40 microns per motor revolution
Maximum Velocity 10 mm / sec
Repeatability 5 microns
Positional Accuracy 15 microns

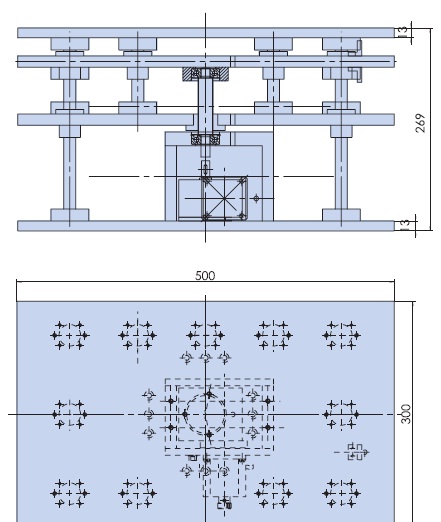

Stepper Motor Driven Mechanical Drawing


  Ordering Information

Part No. Description Amount
AT20-30-01 Stepper Motor Driven Linear Vertical Stage, Load Capacity: 10 0 kg, Range of Travel: 30 mm Click to Get a Quote
AT20-30-02 Brushless DC Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Vertical Stage, Load Capacity 10 0 kg, Range of Travel: 30 mm Click to Get a Quote
AT20-30-03 DC Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Vertical Stage, Load Capacity 10 0 kg, Range of Travel: 30 mm Click to Get a Quote
AT20-30-04 Stepper Motor Driven Linear Vertical Stage with 500 Cycle per Revolution Quadrature Optical Encoder , Load Capacity: 10 0 kg, Range of Travel: 30 mm Click to Get a Quote
