Motorized XY Table
|
|
Home
>
Motorized XY Stages
|
|
Stepper Motor Driven
Linear Two-axis Stage
|
|
The AU200-150x150 Motorized XY Stage is a high resolution, low profile, high load capacity, horizontal stage that can be easily integrated into any current or future application.

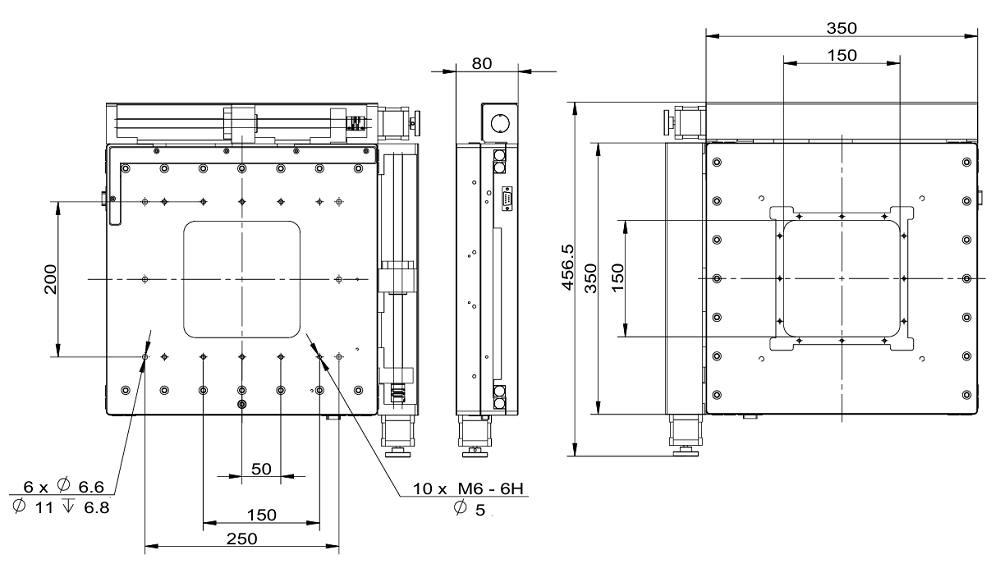

The large 13.78 in x 13.78 in (350 mm x 350 mm) platform has a large aperture for optical application. A solid top is also available.
The precision ground screws provide 5.9 in x 5.9 in (150 mm x 150 mm) of travel with high resolution and repeatability. Two hand knobs are mounted on the motors to provide for manual adjustment. This knob may be replaced with an optical encoder for position verification. The stepper motor may be replaced with a servo motor.
Some applications for the AU200-150 x 150 two-axes stage include: testing, inspection, assembly and sampling in a broad range of industrial, medical, semiconductor and research facilities.
The AU200-150x150 low profile 3.15 in (80 mm) horizontal stage is constructed with black-anodized aluminum alloy and weighs just 18.3 lbs (8.3 kg). The 2-phase NEMA 17 stepper motor and precision 4 mm per turn lead screw offer high load capacity up to 110 lbs (50 kg). The moving platform has access from all four sides and the base plate has easy to access holes for mounting.
This stage requires a
Motion Controller
that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.
|
|
Specifications
|
Type
|
AU200-150x150
|
|
Structure Description
|
Range of Travel
|
150 mm
|
|
Table Size
|
350 mm x 350 mm
|
|
A
perture Size
|
150
mm x 150 mm
|
|
Actuator Type
|
Lead Screw (4 mm per turn, optional 1 mm per turn)
|
|
Travel Guide
|
Precision V-groove & Crossed Roller
|
|
DB-9 Male Connector
|
|
Two Phase Stepper Motor (1.8 Deg)
|
|
| Typical Phase Resistance |
3.8 Ohms, Bi-directional |
| Typical Phase Current |
1 Amp |
| |
|
Pin Assignment and Description
|
|
1
|
+5 VDC
|
|
2
|
CCW Limit Switch
, Open Collector, Normally Open, Needs Pull up Resistor
|
|
3
|
CW Limit Switch, Open Collector
, Normally Open, Needs Pull up Resistor
|
|
4
|
Common
|
|
5
|
Not Connected
|
|
6
|
Stepper Motor Phase A+ |
| 7 |
Stepper Motor Phase A- |
| 8 |
Stepper Motor Phase B+ |
| 9 |
Stepper Motor Phase B- |
|
|
Base Material
|
Aluminum Alloy
|
|
Surface Treatment
|
Black Anodized
|
|
Load Capacity
|
50 kg
|
|
Weight
|
kg
|
|
Typical Accuracy Description
|
Resolution
|
20 microns (Full Step)
1 microns (20 Micro-steps per Step Motor Driver in use) |
|
Repeatability
|
2 microns
|
|
Positional Accuracy
|
10 microns
|
|
Accessories Description
|
|
|
Servo Motor
Optical Encoder
|
|
|
|
Ordering Information
|
Part No.
|
Description
|
Amount
|
|
AU200-150x150-01
|
Stepper Motor Driven
Linear Two-axis Stage,
Range of Travel: 150 mm x150 mm
|
Click to Get a Quote
|
|
AU200-150x150-02
|
Three Phase Brushless Servo Motor with Quadrature Incremental
Optical Encoder Driven
Linear Two-axis Stage,
Range of Travel: 150 mm x150 mm
|
Click to Get a Quote
|
|
AU200-150x150-03
|
DC Servo Motor with Quadrature Incremental
Optical Encoder Driven
Linear Two-axis Stage,
Range of Travel: 150 mm x150 mm
|
Click to Get a Quote
|
|
AU200-150x150-04
|
Stepper Motor Driven
Linear Two-axis Stage
with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the
back of the Stepper Motor
,
Range of Travel: 150 mm x150 mm
|
Click to Get a Quote
|
|
