Motorized XY Stages
|
|

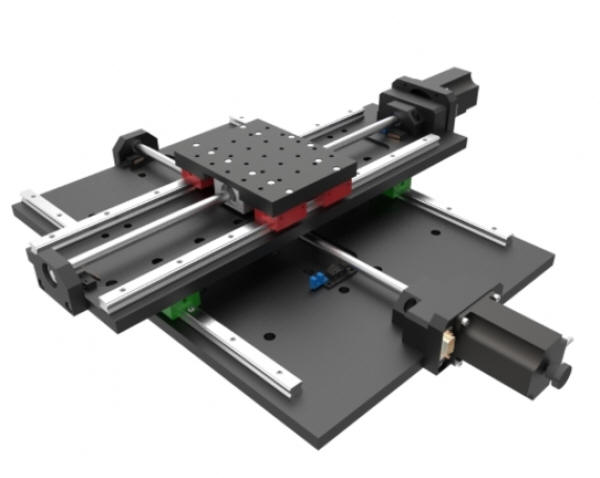

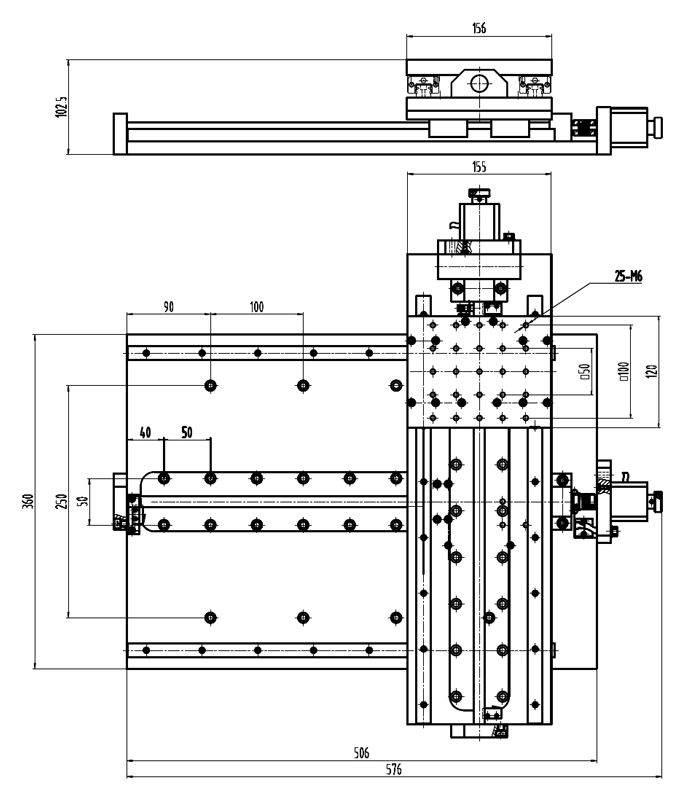

The AU200-300x300 Motorized XY Stage is a high resolution, low profile, high load capacity, horizontal stage that can be easily integrated into any current or future application.
The large 400 mm x 400 mm platform has a large aperture for optical application. A solid top is also available.
The precision ground screws provide 300 mm by 300 mm of travel with high resolution and repeatability. Two hand knobs are mounted on the motors to provide for manual adjustment. These knobs may be replaced with an optical encoder for position verification. The stepper motor may be replaced with a servo motor.
Some applications for the AU200-300x300 two-axes stage include: testing, inspection, assembly and sampling in a broad range of industrial, medical, semiconductor and research facilities.
This stage requires a
Motion Controller
that can be ordered as a complete plug-and-play system with RS-232, USB, joystick and keypad control.
|
|
Specifications
|
Type
|
AU200-300x300
|
|
Structure Description
|
Range of Travel
|
300 mm
|
|
Table Size
|
300 mm x 300 mm
|
|
Aperture Size
|
|
|
Actuator Type
|
Lead Screw: 4 mm per turn
|
|
Travel Guide
|
Precision V-groove & Crossed Roller
|
|
DB-9 Male Connector
|
|
Two Phase Stepper Motor (1.8 Deg)
|
|
| Typical Phase Resistance |
3.8 Ohms, Bi-directional |
| Typical Phase Current |
1 Amp |
| |
|
Pin Assignment and Description
|
|
1
|
+5 VDC
|
|
2
|
CCW Limit Switch
, Open Collector, Normally Open, Needs Pull up Resistor
|
|
3
|
CW Limit Switch, Open Collector
, Normally Open, Needs Pull up Resistor
|
|
4
|
Common
|
|
5
|
Not Connected
|
|
6
|
Stepper Motor Phase A+ |
| 7 |
Stepper Motor Phase A- |
| 8 |
Stepper Motor Phase B+ |
| 9 |
Stepper Motor Phase B- |
|
|
Base Material
|
Aluminum Alloy
|
|
Surface Treatment
|
Black Anodized
|
|
Load Capacity
|
50 kg
|
|
Weight
|
14.5 kg
|
|
Typical Accuracy Description
|
Resolution
|
Control Electronics Dependent
20 microns (Full Step)
2 microns with 10 Micro-steps per Step Motor Driver in use |
|
Repeatability
|
2 microns
|
|
Positional Accuracy
|
10 microns
|
|
Accessories Description
|
|
|
Servo Motor
Optical Encoder
|
|
|
|
Ordering Information
|
Part No.
|
Description
|
Amount
|
|
AU200-300x300-01
|
Stepper Motor Driven
Linear Two-axis Stage,
Range of Travel: 300 mm x 300 mm
|
Click to Get a Quote
|
|
AU200-300x300-02
|
Three Phase Brushless Servo Motor with Quadrature Incremental
Optical Encoder Driven
Linear Two-axis Stage,
Range of Travel:
300 mm x 300 mm
|
Click to Get a Quote
|
|
AU200-300x300-03
|
DC Brush
Servo Motor with Quadrature Incremental
Optical Encoder Driven
Linear Two-axis Stage,
Range of Travel:
300 mm x 300 mm
|
Click to Get a Quote
|
|
AU200-300x300-04
|
Stepper Motor Driven
Linear Two-axis Stage with 500 Cycles per
Revolution Quadrature Encoders Mounted at the back of Stepper
Motors,
Range of Travel:
300 mm x 300 mm
|
Click to Get a Quote
|
|
