Motorized XY Table

Home   > Motorized XY Stages

Motorized  Dual-axis Table, Range of Travel: 50 mm x 50 mm

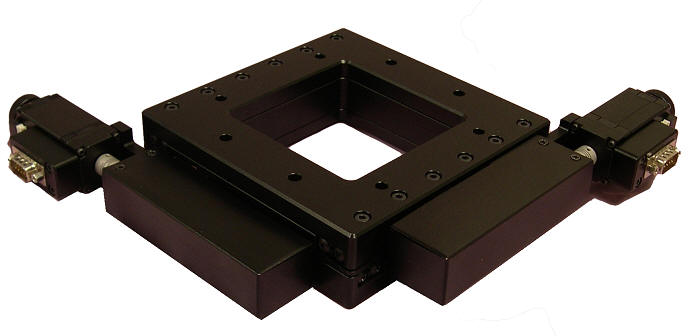

The AU200-50X50 Motorized XY Stage is a high resolution, low profile, high load capacity, horizontal stage that can be easily integrated into any current or future application.

The large 6.1 in x 6.1 in (155 mm x 155 mm) platform has a large aperture for optical application. A solid top is also available.

The precision ground screws provide 2.65in x 2.65in (50 mm x 50 mm) of travel with high resolution and repeatability. Two hand knobs are mounted on the motors to provide for manual adjustment. This knob may be replaced with an optical encoder for position verification. The stepper motor may be replaced with a servo motor.

Some applications for the AU200-50X50 two-axes stage include: testing, inspection, assembly and sampling in a broad range of industrial, medical, semiconductor and research facilities.

The AU200-50X50 low profile horizontal stage is constructed with black-anodized aluminum alloy and weighs just 7.1 lbs (3.2 kg). The 2-phase stepper motor and precision 1 mm per turn lead screw offer high load capacity up to 22 lbs (10 kg). The moving platform has access from all four sides and the base plate has easy to access holes for mounting.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.

Specifications

Type

AU200-50X50

Structure Description

Range of Travel

50 mm

Table Size 155 mm x155 mm
A perture Size 90 mm x 90 mm
Actuator Type Lead Screw ( 1 mm per turn )
Travel Guide

Precision V-groove & Crossed Roller

DB-9 Male Connector

DB9 Male pinout


Two Phase Stepper Motor (1.8°)
Typical Phase Resistance 3.8 Ohms, Bi-directional
Typical Phase Current 1 Amp

Pin Assignment and Description

1

+5 VDC

2

CCW Limit Switch , Open Collector, Normally Open, Needs Pull up Resistor

3

CW Limit Switch, Open Collector , Normally Open, Needs Pull up Resistor

4

Common

5 Not Connected
6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 10 kg
Weight 3.2 kg

Typical Accuracy Description

Resolution 5microns (Full Step)
0.125microns (20 Micro-steps per Step Motor Driver in use)
Repeatability 1.5 microns
Positional Accuracy 5 microns

Accessories Description

Optical Encoder

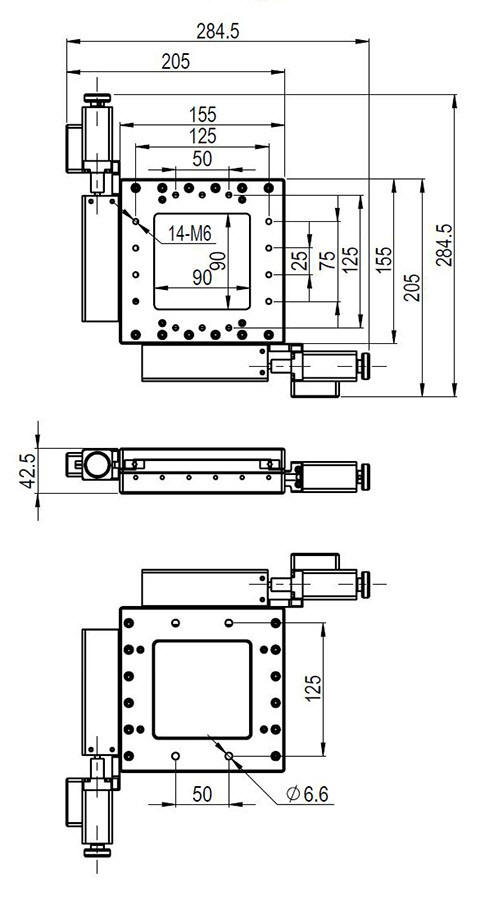

Stepper Motor Driven Mechanical Drawing

Mechanical Drawing of Motorized  Two-axis Table, Range of Travel: 50 mm x 50 mm

  Ordering Information

Part No. Description Amount
AU200-50X50-01 Motorized Linear Two-axis Stage, Range of Travel: 50 mm x 50 mm Click to Get a Quote
AU200-50X50-04 Motorized Linear Two-axis Stage with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motors , Range of Travel: 50 mm x 50 mm Click to Get a Quote
