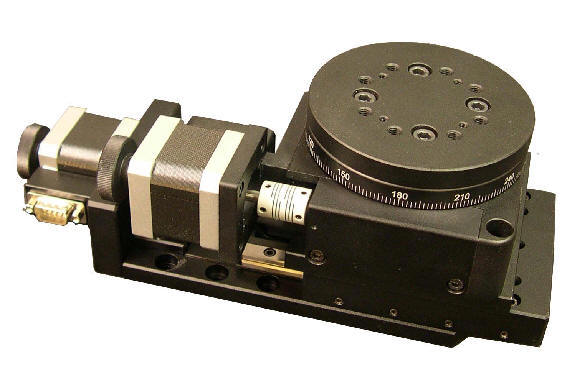

This
motorized
positioning table
is made of
aluminum
alloy with
an elegant
black
anodized
surface.
It provides
15, 30, 50
and 75 mm of
travel at
a maximum
speed of
5 mm per
second.
Other sizes
and travel
strokes are
also
available.
The drive
mechanism is
high precision
crossed roller.
This linear stage is also available with a servo motor and optical encoder.
The knob mounted on the motors allow for manual adjustment.
These knobs may be replaced with an optical encoders for precision position verification.
This stage
is
compatible
with OES'
line of
Motion Controllers.. |
Specifications
|
|
Structure
Description |
Linear Travel |
Range of
Travel (mm) |
Pitch of Lead
Screw |
15 |
1
mm per turn |
30 |
1
mm per turn |
50 |
1
mm per turn |
75 |
1
mm per turn |
100 |
4
mm per turn |
150 |
4
mm per turn |
200 |
4
mm per turn |
300 |
4
mm per turn |
400 |
4
mm per turn |
|
Rotary Travel |
360 Degrees Continuous |
Travel Guide |
High Precision Crossed Roller |
Motor |
|
Phase Resistance
|
3.8 Ohm, Bi-directional |
Maximum Phase Current |
1 Amp |
9 pin DB-9 Male Connector |
Pin Assignment and Description |
1 |
+5 VDC for the Limit Sensors |
2 |
Positive Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 OHM)
|
3 |
Negative Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 OHM)
|
4 |
Return for+5 VDC |
5 |
Not Connected |
6 |
Phase A+ |
7 |
Phase A- |
8 |
Phase B+ |
9 |
Phase B- |
|
Main Material |
Aluminum Alloy |
Surface Treatment |
Black Anodized |
Typical Accuracy
|
Resolution |
Configuration Dependent |
Maximum Speed |
5 mm / sec |
Repeatability |
3 μ |
Positional Accuracy |
10 μ |
Accessories
Description
|
Optional Optical Encoders
Optional Servo Motors
Optional Built-in Stepper Motor Drivers
Other Sizes and Strokes Available |
|
Ordering
Information
Part No. |
Description |
Amount |
XR-xxx-rrr-cc |
Linear X-axis
and Rotary Stage
Range of Travel (mm):
15, 30, 50, 75, 100, 150, 200, 300, 400, 500
The rrr donates the rotary stage diameter in mm.
|
Click to Get a Quote |
|
|
|
|
