Economy Series Linear Actuators
|
|
|
|
Motorized Linear Single-axis Stages |
|
 |
|

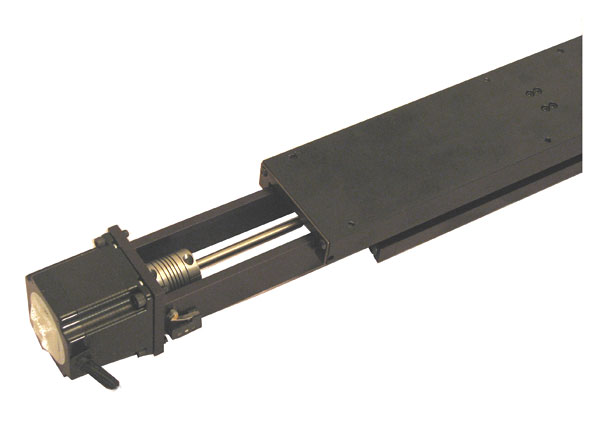

The LA-1 series of linear actuators or linear stages is a slider
actuated by a motor driven ball screw and guided by a linear guide way with a
U-shape rail. The slider acts as the ball screw's nut and the guide way's block.
These actuators may be configured as X-Y, X-Z or X-Y-Z.
All the following actuators may be supplied with any of our
stepping motors,
brush DC
motors and brushless DC
motors.
Motors with optical encoders
are also available.
|
LA-1 Series
2.0"
(50 mm) to 12.0" (304 mm) of Travel |
|
Specifications |
|
Straight Line Accuracy |
0.0007 inches / inch |
|
Repeatability |
0.0004 inches |
|
Lead Accuracy |
0.003 inches / foot |
|
Lead Screw Journal |
3 /16" Diameter for 2, 4 & 6" Travel version
1 /4" Diameter for 8, 10 & 12" Travel version |
|
Material |
|
Carriage & Base |
Black, Anodized Aluminum |
|
Rolling Elements |
Hardened Steel |
|
Acme Lead Screws |
303 Stainless Steel |
|
Nut |
Anti-Backlash Engineered Plastic |
| |
|
| |
|
|
Part No. |
Description |
Amount |
|
LA-1-2 |
Motorized Single-axis Stage with 2.0" of Travel, Motor Cable Length 6 ft
(1.8 m). |
Click to Get a Quote |
|
LA-1-4 |
Motorized Single-axis Stage with 4.0" of Travel with Optional Home Switch, Motor
Cable Length 6 ft (1.8 m). |
Click to Get a Quote |
|
LA-1-6 |
Motorized Single-axis Stage with 6.0" of Travel with
Optional Home Switch, Motor
Cable Length 6 ft (1.8 m). |
Click to Get a Quote |
|
LA-1-8 |
Motorized Single-axis Stage with 8.0" of Travel with
Optional Home Switch, Motor
Cable Length 6 ft (1.8 m). |
Click to Get a Quote |
|
LA-1-10 |
Motorized Single-axis Stage with 10.0" of Travel with
Optional Home Switch, Motor
Cable Length 6 ft (1.8 m). |
Click to Get a Quote |
|
LA-1-12 |
Motorized Single-axis Stage with 12.0" of Travel with
Optional Home Switch, Motor
Cable Length 6 ft (1.8 m). |
Click to Get a Quote |

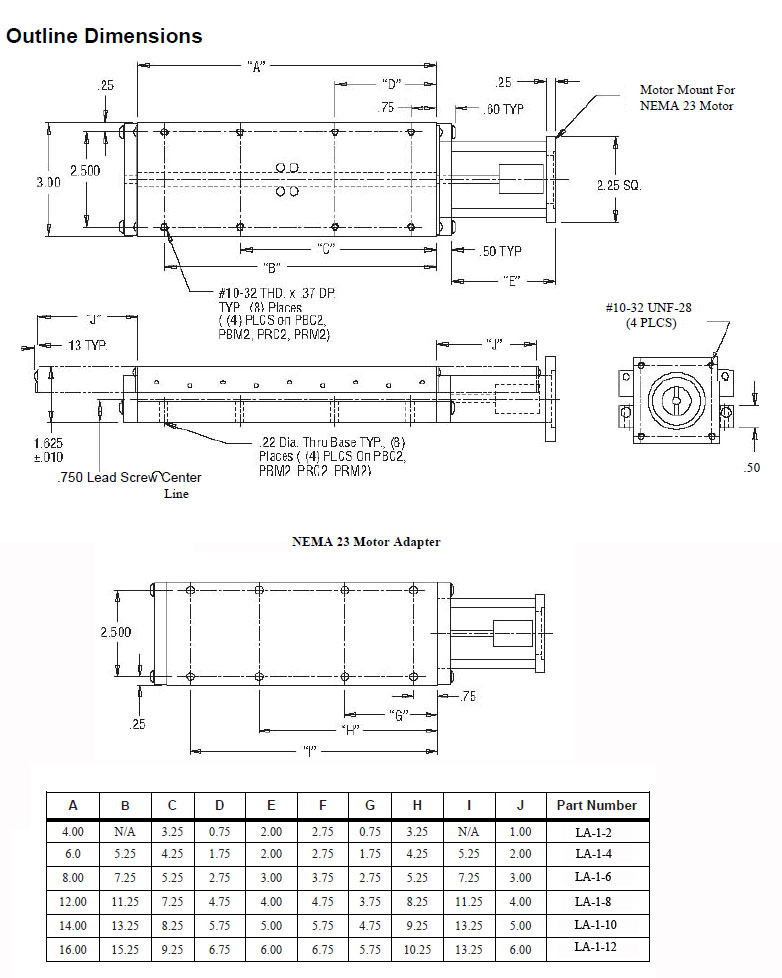

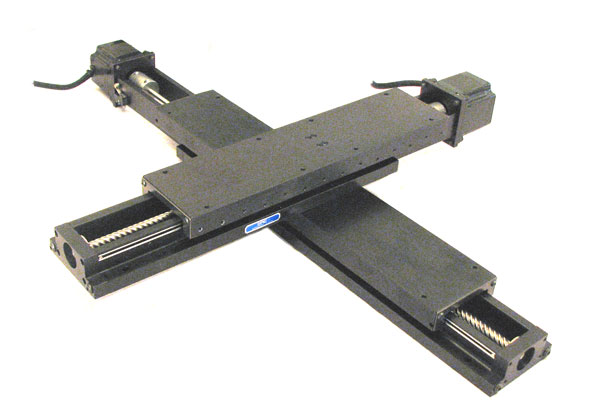

X-Y Configuration

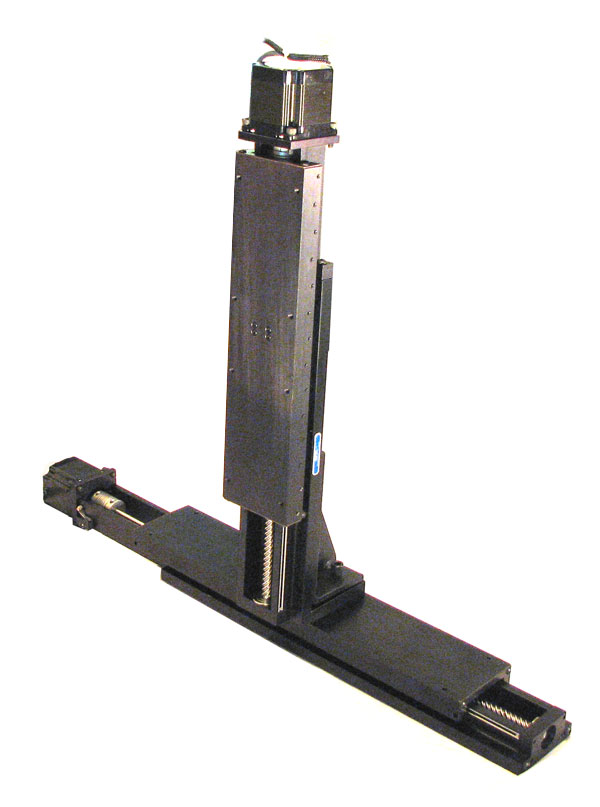

X-Z Configuration
Customized solutions can be provided upon request. |
|
|
