Motorized Single-axis Table
|
|
Home >
Motorized Linear Actuators
>
Low Cost Linear
Single-axis Stages
|
|
|
|
This motorized positioning table is made of aluminum alloy with an elegant black anodized surface.
It provides 700 mm of travel at a Maximum Speed with Stepper Motor of 40 mm per second.
The drive mechanism is lead screw.
The bench size is 160 X 160 mm and has a body weight of 8.3 Kg.
The maximum load of this stage table is 50 Kg.
The resolution of 2.0 microns is achieved with a 10 micro-steps per step stepper motor driver. This linear stage is
also available with a Three Phase Brushless Servo Motor and Optical Encoder (-02 Version)
The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an Optical Encoder (-04 Version) for precision position verification.
This stage requires a
Motion Controller
that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.
Video Demonstration |
|

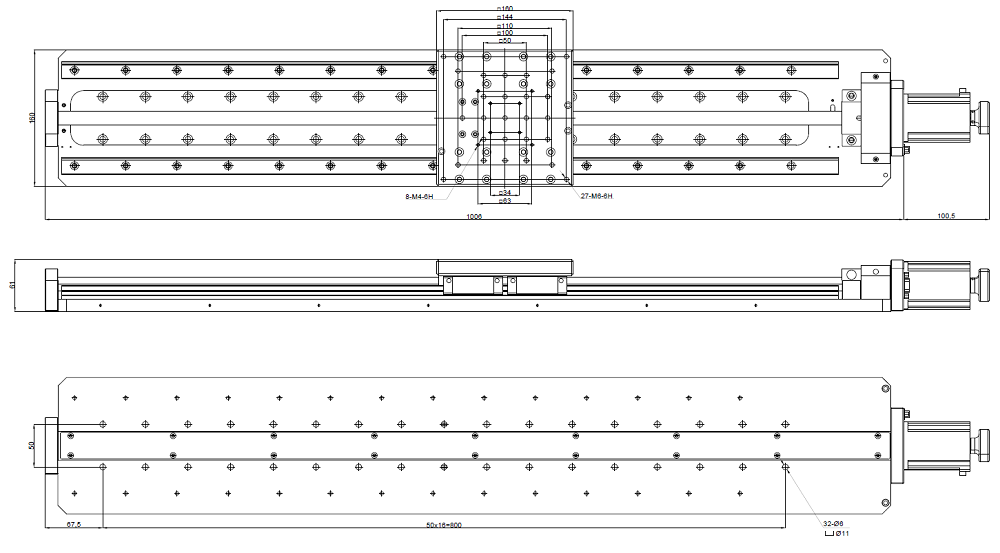

Specifications
| Type |
AQ140-700 |
|
Structure
Description |
Travel |
700 mm |
| Stage Size |
160x160 mm |
| Lead Screw Pitch |
4 mm per turn |
| Travel Guide |
High Precision Linear Ball Bearing |
 |
|
Two-Phase Stepper Motor (1.8 Deg) |
|
Typical Phase Resistance
|
2.0
Ohms, Bi-directional |
| Typical Phase Current |
2 Amps |
|
DB-9 Male Connector |
|
Pin Assignment and Description |
|
1 |
+5 VDC |
|
2 |
Near Motor Limit Switch Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor |
|
3 |
Far End Limit Switch Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor |
|
4 |
Common |
|
5 |
Not Connected |
|
6 |
Stepper Motor Phase A+ |
|
7 |
Stepper Motor Phase A- |
|
8 |
Stepper Motor Phase B+ |
|
9 |
Stepper Motor Phase B- |
|
|
| Body Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Load Capacity |
50 Kg |
| Weight |
14.7 kg |
|
Typical Accuracy
|
Resolution |
2 microns with 10 Micro-steps per Step Motor Driver in use
1.25 microns with 20 Micro-steps per Step Motor Driver in use |
| Maximum Speed with Stepper Motor |
80 mm/sec |
| Maximum Speed with Servo Motor |
|
| Positioning Accuracy |
10 microns |
|
Accessories
Description
|
| Optical Encoder (-04 Version) |
Three Phase Brushless Servo Motor and Optical Encoder (-02 Version)
|
|
|
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
AQ140-700-01 |
Stepper Motor Driven Linear Single-axis Stage, Travel
: 700 mm |
Click to Get a Quote |
|
AQ140-700-02 |
Three Phase Brushless Servo Motor with Quadrature Incremental
Optical Encoder Driven Linear Single-axis Stage, Travel
: 700 mm |
Click to Get a Quote |
|
AQ140-700-03 |
DC Servo Motor with Quadrature Incremental
Optical Encoder Driven Linear Single-axis Stage, Travel :
700 |
Click to Get a Quote |
|
AQ140-700-04 |
Stepper Motor Driven
Linear Single-axis Stage with 500 Cycles per Revolution
Quadrature Optical Encoder Mounted at the back
of the Stepper Motor, Travel :
700 |
Click to Get a Quote |
|
|
