Motorized Z-axis Linear Positioning Stage

Home > Motorized Vertical Single-axis Stages

Stepper Motor Driven Linear Vertical Linear Positioning Stage, Range of travel, 40 mm

These high resolution, compact, low profile elevator stages feature high stability 200 mm x 200 mm tables and 40 mm of vertical travel. High precision ball bearing profile rails assure very high parallelism and smooth motion throughout the raising and lowering of the table. These Z-Axis Stages are ideal for: Microscopy, inspection, metrology, positioning, photonics, sampling, and laser drilling and machining.

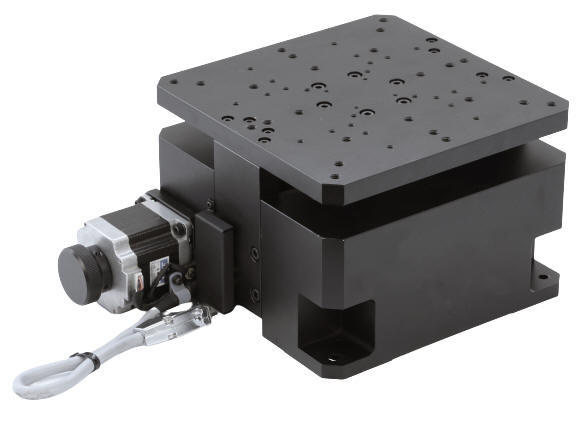

Driven by Two-Phase Stepper Motors, the DAG40-200-01 and the DAG40-200-04 Motorized Elevator Stages feature 2 micron positioning accuracy, and resolutions of 0.042 microns (with a 10 Micro-steps per step motor driver in use). The knob for manual adjustment on the DAG40-200-01 (shown) is replaced with a Quadrature Incremental Optical Encoder for position verification on the DAG40-200-04. The load capacity of these compact stages is 30 kg.

Speed of travel is 5 mm per second and limit switches prevent over traveling. The table of each stage has a precise pattern of threaded holes for fixtures or tooling, and holes in the base allow for easy integration into a new or existing application.

These stages require a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.

Specifications

Type

DAG40-200

Structure Description

Travel

40 mm

Table Size 200 mm × 200 mm
Ratio 0.084 mm per motor turn
Travel Guide

Linear Guide

DB-9 Male Connector



Two-Phase Stepper Motor (1.8°)
Typical Phase Current 2.8 Amp
Electrical Connection
Pin No. Description
1 +24 VDC for the Limit Sensors
2 High Side Limit Switch
Open Collector or Normally Open
Needs Pull up Resistor (typically 1000 Ohms)

3 Low Side Limit Switch
Open Collector or Normally Open
Needs Pull up Resistor (
typically 1000 Ohms)

4 Return for+24 VDC
5 Not Connected
6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-

Body Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 30 kg
Weight 12.5 kg

Typical Accuracy

Resolution 0.042 microns (10 Micro-steps per Step Motor Driver in use)
Maximum Speed with Stepper Motor 5 mm / sec
Typical Positioning Accuracy 2 microns

Accessories Description


Optical Encoder





Stepper Motor Driven Mechanical Drawing

Drawing of Motorized Linear Vertical Linear Positioning Stage, Range of travel, 40 mm


 Ordering Information


Part No. Description Amount
DAG40-200-01 Stepper Motor Driven Linear Vertical Linear Positioning Stage, Load Capacity 30 kg, Range of travel, 40 mm Click to Get a Quote
DAG40-200-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Vertical Stage, Load Capacity 30 kg, Range of Travel: 40 mm Click to Get a Quote
DAG40-200-03 DC Brush Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Vertical Stage, Load Capacity 30 kg, Range of Travel: 40 mm Click to Get a Quote
DAG40-200-04 Stepper Motor Driven Linear Vertical Linear Positioning Stage with 500 Cycle per Revolution Quadrature Optical Encoder, Load Capacity 30 kg, Range of travel, 40 mm Click to Get a Quote
