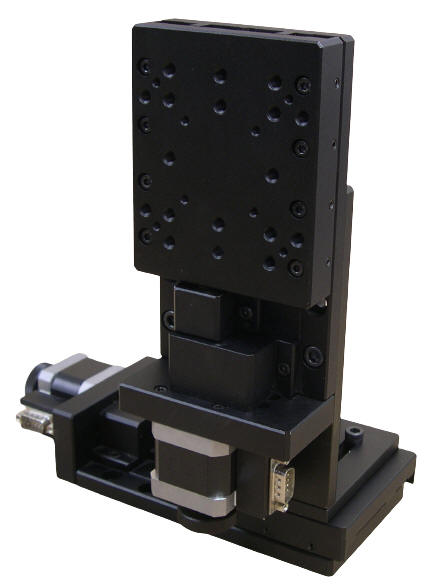

Stepper Motor Driven Two-axis XZ-plane Stage, Travel : 15 mm

This two-axis motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 15 mm of travel at a maximum speed of 5 mm per second. The drive mechanism is lead screw.

The bench size is 65 X 65 mm and has a body weight of 4.6 Kg.

This linear stage is also available with a servo motor and optical encoder.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.

Specifications

Type

XZ110-15

Structure Description

Travel

15 mm

Table Size

65 mm x 65 mm

Lead Screw Pitch

1 mm per turn

Travel Guide

High Precision Crossed Roller

Motor


Phase Resistance	3.8 Ohm, Bi-directional
Maximum Phase Current	1 Amp
9 pin DB-9 Male Connector
Pin Assignment and Description
1	+5 VDC for the Limit Sensors
2	Positive Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 OHM)
3	Negative Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 OHM)
4	Return for+5 VDC
5	Not Connected
6	Motor Phase A+
7	Motor Phase A-
8	Motor Phase B+
9	Motor Phase B-

Main Material

Aluminum Alloy

Surface Treatment

Black Anodized

Load Capacity

Weight

1.5 kg

Typical Accuracy

Resolution

Control Electronics Dependent, Control Electronics Dependent, 0.5 microns with 10 Micro-steps per Step Motor Driver in use

0.25 microns with 20 Micro-steps per Step Motor Driver in use

Maximum Speed

5 mm / sec

Repeatability

+/-3 microns

Positional Accuracy

10 microns

Accessories Description

Optical Encoder

Servo Motor

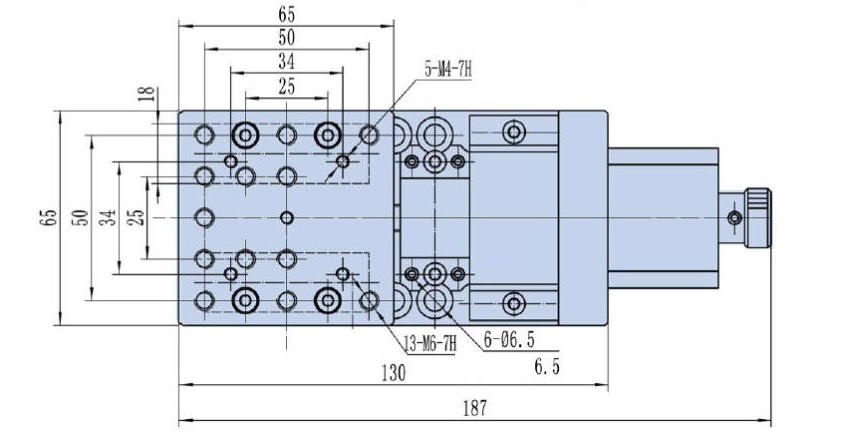

Stepper Motor Driven Mechanical Drawing

Stepper Motor Driven Two-axis XZ-plane Stage, Travel : 15 mm

Click to Get the STEP file of XZ110-15.

Ordering Information

Part No.	Description	Amount
XZ110-15	Stepper Motor Driven Two-axis XZ-plane Stage, Travel : 15 mm	Click to Get a Quote
