Motorized Z-axis Table

Home > Assorted Motorized Multi-axis Stages > Motorized Z-axis Linear Positioning Stages

Motorized Single-axis Vertical Stage, Travel : 15 mm

This motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 15 mm of travel at a Maximum Speed with Stepper Motor of 5 mm per second. The drive mechanism is lead screw.

The bench size is 65 X 65 mm and has a body weight of 1.2 Kg.

The maximum load of this stage table is 10 Kg.

This linear stage is also available with a three phase brushless motor and Optical Encoder .

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an Optical Encoder for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.

Specifications

Type

Z110-15

Structure Description

Travel

15 mm

Table Size

65 mm x 65 mm

Lead Screw Pitch

1 mm per turn

Travel Guide

High Precision Crossed Roller

DB-9 Male Connector

Two-Phase Stepper Motor
Typical Phase Resistance	3.8 Ohms, Bi-directional
Typical Phase Current	1 Amp

Pin Assignment and Description
1	+5 VDC for the Limit Sensors
2	CCW Limit Switch The table moves away from the motor The knob turns counter clockwise Open Collector Normally Open Needs Pull up Resistor (typically 1000 Ohms)
3	CW Limit Switch The table moves towards the motor The knob turns clockwise Open Collector Normally Open Needs Pull up Resistor (typically 1000 Ohms)
4	Return for+5 VDC
5	Not Connected
6	Stepper Motor Phase A+
7	Stepper Motor Phase A-
8	Stepper Motor Phase B+
9	Stepper Motor Phase B-

Body Material

Aluminum Alloy

Surface Treatment

Black Anodized

Load Capacity

5 kg

Weight

1.2 kg

Typical Accuracy

Resolution

Control Electronics Dependent, 0.5 microns with 10 Micro-steps per Step Motor Driver in use

0.25 microns with 20 Micro-steps per Step Motor Driver in use

Maximum Speed with Stepper Motor

5 mm / sec

Maximum Speed with Servo Motor

Positioning Accuracy

10 microns

Accessories Description

Positioning Repeatability

+/- 2 microns

Optical Encoder

Three Phase Brushless Servo Motor and Optical Encoder (-02 Version)

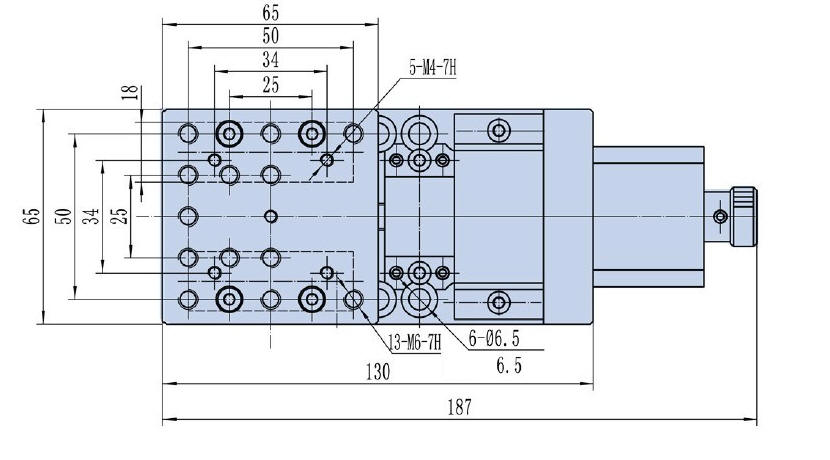

Stepper Motor Driven Mechanical Drawing

Stepper Motor Driven Single-axis Vertical Stage, Travel: 15 mm

Click to Get the STEP file

Ordering Information

Part No.	Description	Amount
Z110-15-01	Stepper Motor Driven Single-axis Vertical Stage, Travel : 15 mm	Click to Get a Quote
Z110-15-02	Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Vertical Stage, Travel : 15 mm	Click to Get a Quote
Z110-15-03	DC Servo Motor with Quadrature Incremental Optical Encoder Driven Vertical Single-axis Stage, Travel : 15 mm	Click to Get a Quote
Z110-15-04	Stepper Motor Driven Single-axis Vertical Stage with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor, Travel : 15 mm	Click to Get a Quote
