Motorized Z-axis Table
|
|
Home >
Assorted
Motorized Multi-axis Stages
>
Motorized Z-axis Linear
Positioning Stages
|
|
|
|

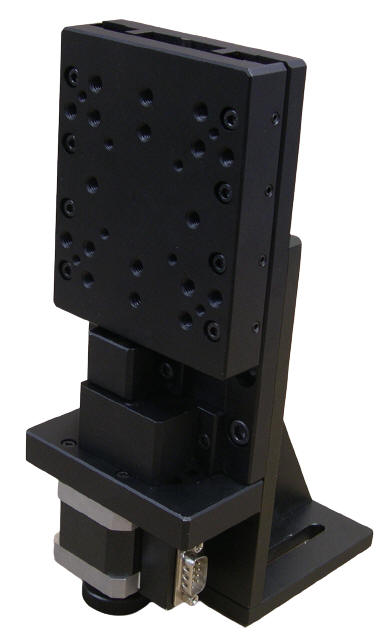

This motorized positioning table is made of aluminum alloy with an elegant black anodized surface.
It provides 50 mm of travel at a Maximum Speed with Stepper Motor of 10 mm per second. The drive mechanism is lead screw.
The bench size is 90 X 110 mm and has a body weight of 1.4 Kg.
The maximum load of this stage table is 15 Kg.
This linear stage is also available with a Three Phase Brushless Servo Motor and Optical Encoder (-02 Version).
The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an Optical Encoder for precision position verification.
This stage requires a
Motion Controller
that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control. |
|

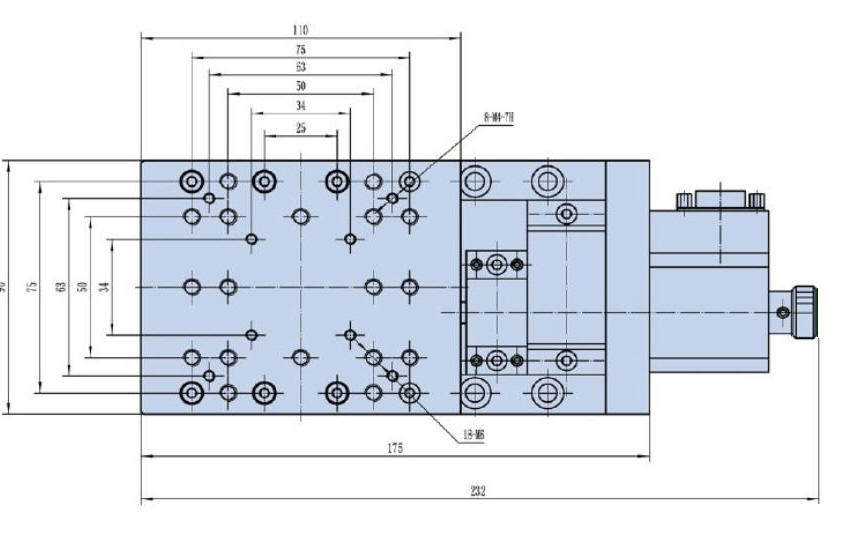

Specifications
| Type |
Z110-50 |
|
Structure Description |
Travel |
50 mm |
| Table Size |
90x110 mm |
| Lead Screw Pitch |
1 mm per turn |
| Travel Guide |
High Precision Crossed Roller |
|
|
Two-Phase Stepper Motor (1.8 Deg)
| Typical Phase Resistance |
3.8 Ohms, Bi-directional |
| Typical Phase Current |
1 Amp |
|
DB-9 Male Connector |
|
Pin Assignment and Description |
| 1 |
+5 VDC for the Limit Sensors |
| 2 |
CCW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 Ohms)
|
| 3 |
CW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 Ohms)
|
| 4 |
Return for+5 VDC |
|
5 |
Not Connected |
|
6 |
Stepper Motor Phase A+ |
| 7 |
Stepper Motor Phase A- |
| 8 |
Stepper Motor Phase B+ |
| 9 |
Stepper Motor Phase B- |
|
| Body Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Load Capacity |
5.0 kg |
| Weight |
1.5 kg |
|
Typical Accuracy
|
Resolution |
Control Electronics Dependent, 0.5 microns with 10 Micro-steps per Step Motor Driver in use
0.25 microns with 20 Micro-steps per Step Motor Driver in use |
| Maximum Speed with Stepper Motor |
10 mm/sec |
| Maximum Speed with Servo Motor |
|
| Positioning Accuracy |
10 microns |
|
Accessories Description
|
Positioning Repeatability |
+/- 2 microns |
| Optical Encoder |
| Three Phase Brushless Servo Motor and Optical Encoder (-02 Version) |
|
|
|
Ordering
Information
|
Part No. |
Description |
Amount |
|
Z110-50-01 |
Stepper Motor Driven Single-axis Vertical Stage, Travel
: 50 mm |
Click to Get a Quote |
|
Z110-50-02 |
Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Vertical Single-axis Stage, Travel
: 50 mm |
Click to Get a Quote |
|
Z110-50-03 |
DC
Servo Motor with Quadrature Incremental Optical Encoder Driven Vertical Single-axis Stage, Travel :
50mm |
Click to Get a Quote |
|
Z110-50-04 |
Stepper Motor Driven Single-axis Vertical Stage
with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor, Travel : 50 mm |
Click to Get a Quote |
|
|
