Motorized Z-axis Table

Home >  Assorted Motorized Multi-axis Stages >  Motorized Z-axis Linear Positioning Stages


This motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 700 mm of travel at a maximum speed with stepper motor of 40 mm per second. The drive mechanism is lead screw.

The bench size is 160 X 160 mm.

The maximum vertical load of this stage table is Model Dependent.

The resolution of 2 microns is achieved with a 10 micro-steps per step stepper motor driver. This linear stage is
also available with a Three Phase Brushless Servo Motor and  Optical Encoder (-02 Version).

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an  Optical Encoder (-04 Version) for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.



Specifications
Type

Z140-700

Structure Description

Travel

700 mm

Stage Size 120120 mm
Lead Screw Pitch 4 mm per turn
Travel Guide

High Precision Linear Ball Bearing

Two-Phase Stepper Motor (1.8)
Typical Phase Resistance 3.8 Ohms,  Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Pin Assignment and Description

1

+5 VDC

2

CW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

3

CCW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

4

Common

5

Not Connected

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-



Body Material Aluminum Alloy
Surface Treatment Black Anodized
Load capacity Model Dependent
Weight 11.5 kg

Typical Accuracy

Resolution Control Electronics Dependent, 2 microns with 10 Micro-steps per Step Motor Driver in use
1 /Pulse (20 Micro-steps per Step Motor Driver in use)
maximum speed with stepper motor 50 mm/sec
Maximum Speed with Servo Motor
Positioning Accuracy 10 microns

Accessories Description

 Optical Encoder (-04 Version)
Three Phase Brushless Servo Motor and  Optical Encoder (-02 Version)


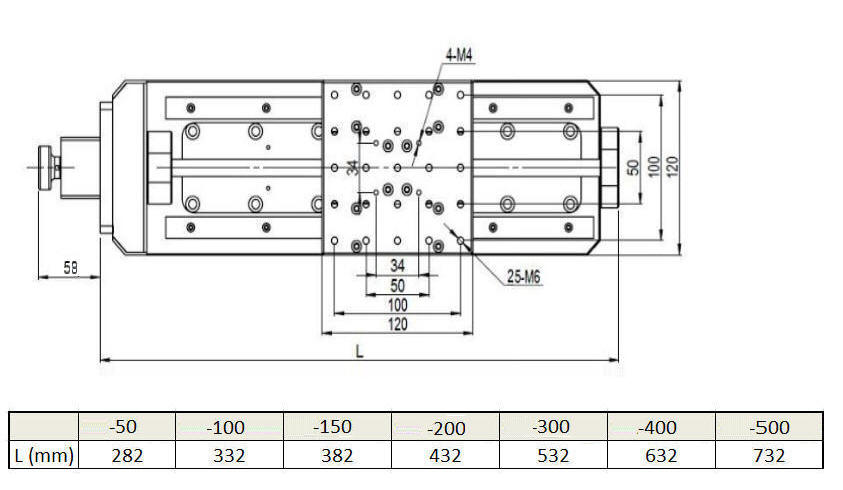

Mechanical Drawing

Stepper Motor Driven Single-axis Vertical Stage, Travel: 700 mm

Click to Get the STEP file

 Ordering Information

Part No. Description Amount
Z140-700-01 Stepper Motor Driven Single-axis Vertical Stage, Travel  : 700 mm Click to Get a Quote
Z140-700-02 Three Phase Brushless Servo Motor with Quadrature Incremental  Optical Encoder Driven Vertical Stage, Travel  : 700 mm Click to Get a Quote

OES line of Motion Controllers Motion Controllers
