Motorized Three-axis Gimbal Mount, Yaw, Pitch and Roll Axes
(Azimuth, Elevation and Roll Axes)

Home   > Assorted Motorized Gimbal Mounts

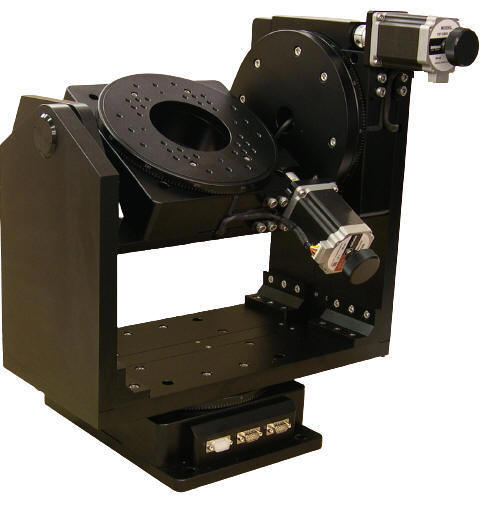

Stepper Motor Driven Three-axis Gimbal Mount, Azimuth, Elevation and Roll Axes (Yaw, Pitch and Roll Axes)

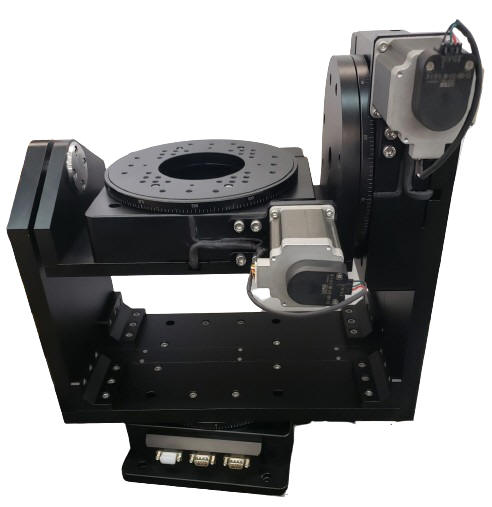

Stepper Motor Driven Three-axis Gimbal Mount, Azimuth, with Quadrature Optical Encoders

These four AU270-AER Three Axis Gimbal Mounts were developed to be used with larger and heavier: Cameras, telescopes, directional antennas, optics, lasers, tracking and scanning systems. These new, larger, high stability, gimbal mounts are 400 mm wide x 480 mm high, weigh 50 kg and handle loads up to 10 kg. This series accommodates an aperture hole of 30 mm.

The Azimuth, Angular Elevation, and Roll Stages of the AU270-AER all feature high precision 100 mm diameter rotary stages. The Roll Stage has a precision pattern of threaded holes for mounting tooling, cameras, lasers, etc., and a through hole for cables and optics.  Devices up to 260 mm wide can be mounted on the rotary stage. Each stage features V-groove and crossed roller bearings, capable of 360 Degrees of continuous rotation and driven by a 180:1 worm gear.  Motor options to power each stage include: Two Phase-Stepper Motors (AU270-AER-01), Three Phase Brushless Servo Motors with Quadrature Incremental Optical Encoders (AU270-AER-02), DC Servo Motors with Quadrature Incremental Optical Encoders (AU270-AER-03), or Two-Phase Stepper Motors with Quadrature Incremental Optical Encoders for position verification (AU270-AER-04). Electrical connections are made using 9 pin DB-9 connectors.

The knobs of the stepper motors may be replaced with optical encoders for position verification.

The resolution of each stage is 0.001 degree or 3.6 arcsec with 10 micro-steps per Step Motor Driver in use. Higher resolutions and travel speeds to 45 Degrees per second are possible with the servo motor options.

An optional 450 mm x 450 mm aluminum plate with four handles and mounting holes for increased stability is available and these.

An Elevation and Roll Axis version of this gimbal is available.

The AU270-AER Motorized Three-axis Gimbal Mounts require a
Motion Controller that can be ordered as a complete plug-and-play system with  joystick, trackball, and keypad.

Video Demonstration



Specifications

Type

AU270-AER

Structure Description

Range of Travel

360 Deg Continuous on All Axes

Table Size Diameter: 7.874 in (200 mm)
Through Hole (Aperture) Diameter 9 0 mm
Gear Ratio 180:1
Actuator Type Worm and Worm Gear
Travel Guide

Precision V-groove & Crossed Roller

Yaw Motor

DB9 Male pinout

Typical Phase Current 2 Amp

DB-9 Male Connector

Pin Assignment and Description

1

+5 VDC

2

Channel-A of Encoder (Optional)

3

Channel-B of Encoder (Optional)

4

Common

5

HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Pitch Motor

DB9 Male pinout

Typical Phase Current 2 Amp

DB-9 Male Connector

Pin Assignment and Description

1

+5 VDC

2

Channel-A of Encoder (Optional)

3

Channel-B of Encoder (Optional)

4

Common

5

HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Roll Motor

DB9 Male pinout

Typical Phase Current 2 Amp

DB-9 Male Connector

Pin Assignment and Description

1

+5 VDC

2

Channel-A of Encoder (Optional)

3

Channel-B of Encoder (Optional)

4

Common

5

HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-
Base Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 10 kg (22 lb)
Weight 39 kg (86 lb)

Resolution 0.001 Deg = 3.6 arcsec (10 Micro-steps per Step Motor Driver in use)
Maximum Speed of the Azimuth axis with Stepper Motor 8 Deg/sec
Maximum Speeds of the Elevation and Roll Axes with Stepper Motors 8 Deg/sec
Maximum Speed of the Azimuth axis with Servo Motor 45 Deg/sec
Maximum Speed of the Elevation and Roll Axes with Servo Motors 45 Deg/sec

Typical Accuracy

Accuracy 0.05 Deg = 180 arcsec
Repeatability +/- 0.01 Deg = +/- 36 arcsec

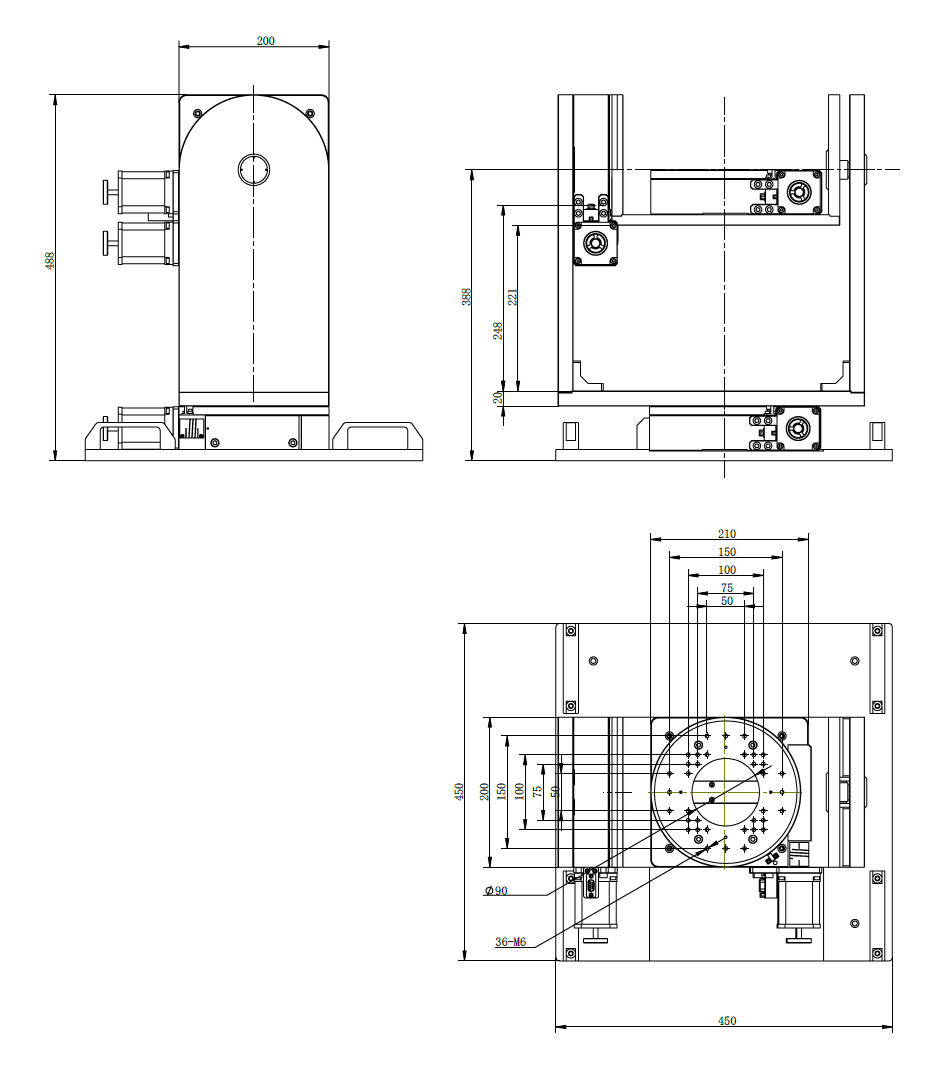

Mechanical Drawing


Click to get the STEP file of the stage

  Ordering Information

Part No. Description Amount
AU270-AER-01 Stepper Motor Driven Three-axis Gimbal Mount, Azimuth, Elevation and Roll Axes (Yaw, Pitch and Roll Axes) Click to Get a Quote
AU270-AER-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Three-axis Gimbal Mount, Azimuth, Elevation and Roll Axes (Yaw, Pitch and Roll Axes) Click to Get a Quote
AU270-AER-03 DC Servo Motor with Quadrature Incremental Optical Encoder Driven Three-axis Gimbal Mount, Azimuth, Elevation and Roll Axes (Yaw, Pitch and Roll Axes) Click to Get a Quote
AU270-AER-04 Stepper Motor Driven Three-axis Gimbal Mount, Azimuth, Elevation and Roll Axes (Yaw, Pitch and Roll Axes) with 500 Cycles per Revolution Quadrature Optical Encoders Mounted at the back of the  Stepper Motors Click to Get a Quote
