Motorized Two-axis Gimbal Mount,
Elevation and Roll Axes
(Pitch and Roll Axes)
|
Home
>
Assorted Motorized Gimbal Mounts
|
 |
 |
|
Stepper Motor Driven Two-axis Gimbal Mount, Elevation and Roll axes (Pitch and Roll Axes)
|
DC
Servo Motor with Quadrature Incremental Optical Encoder Driven
Two-axis Gimbal Mount,
Elevation
and Roll axes (Pitch and Roll Axes)
|
|
|
These Elevation and Roll Gimbal Mounts are ideal for mounting: Cameras, antennas, projectors, lasers and instrumentation for scanning, tracking, positioning optics, and other applications.

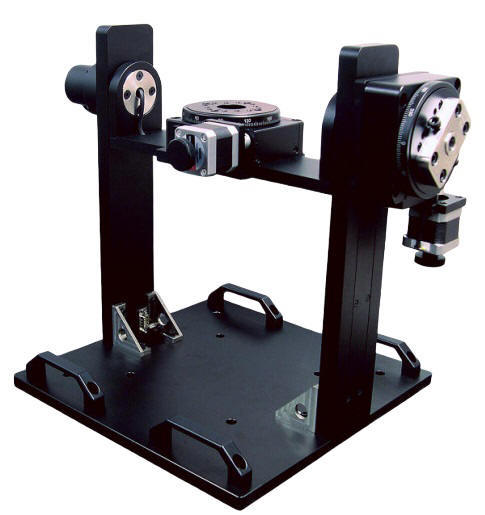

Each axis of the gimbal mount features: Low backlash worm gear drives and precision "V" groove and cross roller bearings for very high repeatability and positional accuracy. Available with either stepper motors (AU300-AE-01 pictured) or with three-phase brushless servo motors with Quadrature Optical Encoders (AU300-AE-02) for greater resolution, accuracy, and repeatability as well as higher travel speeds.

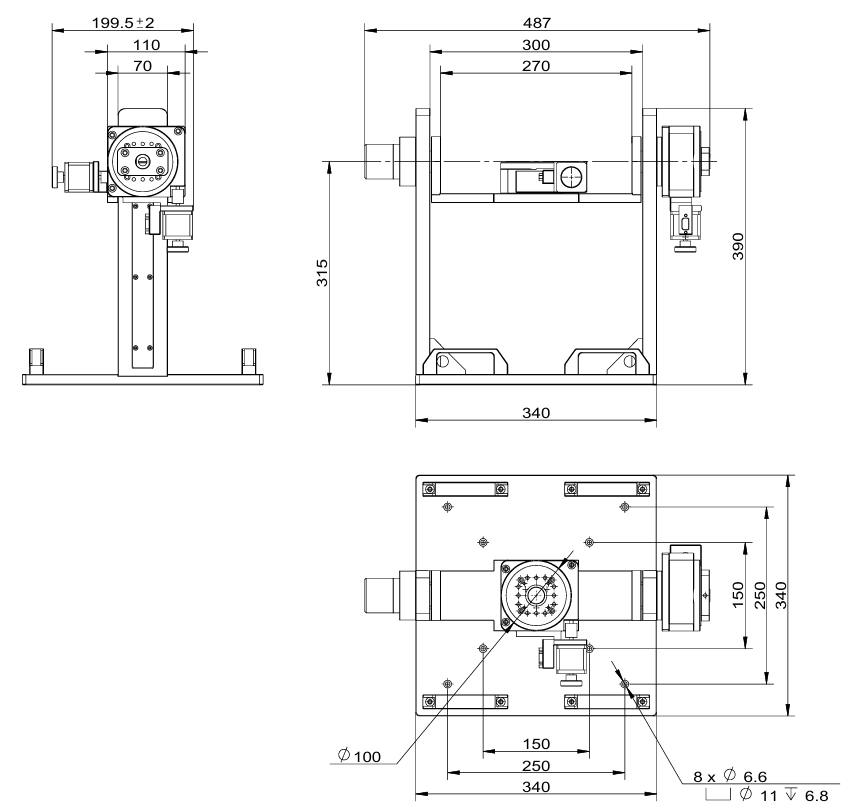

The gimbal is mounted on a large 360 mm (14.173 in.) x 360 mm (14.173 in.) x 13 mm (0.512 in.) plate for increased stability and the elevation (pitch) axis has a clearance of 300 mm x 300 mm, (11.8 in. x 11.8 in.) around the roll axis stage. The elevation table has a precise pattern of threaded mounting holes for fixtures, tooling through hole.
Each AU300-ER Series Roll and Elevation Two-axis Gimbal Mount handles loads to 10 kg (22 lbs), and the base plate has four handles and accessible predrilled mounting holes for easy integration into new or existing applications. The travel speeds of each axis are 12 Degrees per second with stepper motors and 45 Degrees per second with servo motors. Electrical wiring is enclosed for protection and connections are made using 9 pin DB-9 connectors.
The knobs of the stepper motors may be replaced with optical encoders for position verification.
A
Three-axis
version
is also available.
The AU300-AE Motorized Two-axis Gimbal Mounts require a
Motion Controller
that can be ordered as a complete plug-and-play system with joystick, trackball, and keypad
Video Demonstration
|
|
Specifications
|
Type
|
AU300-ER
|
|
Structure
Description
|
Range of Travel |
360 Deg Continuous
on Azimuth and Roll Axes
|
| Table Size |

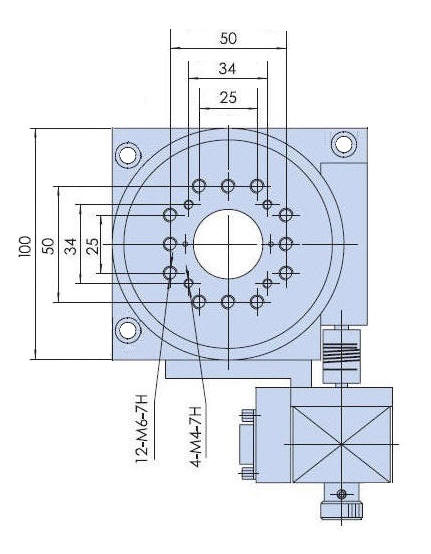

Diameter: 100 mm (3.937 in)
|
| Gear Ratio |
180:1 |
| Actuator Type |
Worm and Worm Gear |
| Travel Guide |
Precision V-groove & Crossed Roller |
|
Elevation Motor
|
| Typical Phase Resistance |
3.8 Ohms, Bi-directional |
| Typical Phase Current |
1 Amp |
|
DB-9 Male Connector
|
|
Pin Assignment and Description
|
|
1
|
+5 VDC
|
|
2
|
Channel-A of Encoder (Optional) |
|
3
|
Channel-B of Encoder (Optional) |
|
4
|
Common
|
|
5
|
HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor |
|
6
|
Stepper Motor Phase A+ |
| 7 |
Stepper Motor Phase A- |
| 8 |
Stepper Motor Phase B+ |
| 9 |
Stepper Motor Phase B- |
|
|
Roll Motor
|
| Typical Phase Resistance |
3.8 Ohms, Bi-directional |
| Typical Phase Current |
1 Amp |
|
DB-9 Male Connector
|
|
Pin Assignment and Description
|
|
1
|
+5 VDC
|
|
2
|
Channel-A of Encoder (Optional) |
|
3
|
Channel-B of Encoder (Optional) |
|
4
|
Common |
|
5
|
HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor |
|
6
|
Stepper Motor Phase A+ |
| 7 |
Stepper Motor Phase A- |
| 8 |
Stepper Motor Phase B+ |
| 9 |
Stepper Motor Phase B- |
|
| Base Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Load Capacity |
10 kg (22 lb) |
| Weight |
14.1 kg (31 lb) |
Resolution |
0.001 Deg = 3.6 arcsec (10 Micro-steps per Step Motor Driver in use)
|
|
Maximum Speeds with Stepper Motors
|
12 Deg/sec |
|
Maximum Speeds with Servo Motors
|
45
Deg/sec
|
|
Typical Accuracy
|
|
Accuracy
|
0.05 Deg = 180 arcsec
|
|
Repeatability
|
+/- 0.01 Deg = +/- 36 arcsec
|
Click to get the STEP file
|
|
|
Ordering Information
|
Part No.
|
Description
|
Amount
|
|
AU300-ER-01
|
Stepper Motor Driven Two-axis Gimbal Mount, Elevation and Roll axes (Pitch and Roll Axes)
|
Click to Get a Quote
|
|
AU300-ER-02
|
Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven
Two-axis Gimbal Mount,
Elevation
and Roll axes (Pitch and Roll Axes)
|
Click to Get a Quote
|
|
AU300-ER-03
|
DC
Servo Motor with Quadrature Incremental Optical Encoder Driven
Two-axis Gimbal Mount,
Elevation
and Roll axes (Pitch and Roll Axes)
|
Click to Get a Quote
|
|
AU300-ER-04
|
Stepper Motor Driven Two-axis Gimbal Mount,
Elevation and Roll axes (Pitch and Roll Axes)
with 500 Cycles per Revolution Quadrature Optical Encoders Mounted at the back of the
Stepper Motors
|
Click to Get a Quote
|
|
|
