Dual-axis Pitch and Roll Stage
|
|
Home >
Motorized Yaw, Pitch and Roll Stages
|
|
|
 |
|
The
Dual-axis Pitch and Roll Stage
are
used
for:
Identifying
crystals,
examining
cutting
edges
of
medical
instruments,
estimating
hyperspectral
bidirectional
reflectance,
gloss
measurements,
measurements
of
radiation
patterns
of
LEDs,
Directing
lasers,
aligning
mirrors,
and
manufacturing
of
quartz
oscillator
plates
using
quartz
cutting
x-rays.
The
lower stage
features
±
10
degrees
of
rotation
at a
rate
of
14
degrees
per
second
with
stepper
motor
and
90
degrees
per
second
with
Three
Phase
Brushless
Servo
Motor
with
Quadrature
Incremental
Optical
Encoder.
The
upper stage
features
a 65
mm x
65
mm
table,
±
15
degrees
of
rotation
at a
rate
of
14
degrees
per
second
with
stepper
motor
and
90
degrees
per
second
with
Three
Phase
Brushless
Servo
Motor
with
Quadrature
Incremental
Optical
Encoder.
The
accuracies
for
each
unit
are;
repeatability:
± 4"
(240
arcseconds),
typical
Positioning
accuracy:
± 9"
(540
arcseconds).
The
precision,
compact
Dual-axis Pitch and Roll Stage
stage,
available
with
either
stepper,
Three
Phase
Brushless
Servo
Motor
with
Quadrature
Incremental
Optical
Encoders,
optical
encoders
or
manual
adjustment
knobs.
It
has
a
footprint
of
just
169
mm x
169
mm,
and
can
be
supplied
plug-and-play
with
a
motion
controller.
It
is
easily
integrated
into
an
inspection,
testing,
or
manufacturing
environment.
The Dual-axis Pitch and Roll Stages require a
Motion Controller
that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control. |
|
|
|
Specifications
|
Type |
PR110-15-10 |
|
Range of Travel |
+/-15° (Roll Axis)
+/-10°
(Pitch Axis ) |
|
Table Size |
65 mm x 65 mm |
|
Gear Ratio |
1° (stage) :
252° (motor) (Roll Axis)
1° (stage) : 352° (motor) (Pitch Axis) |
|
Height of Rotation Stage |
50 mm+/-0.2 mm |
|
Drive Mechanism |
Worm Gear |
|
Travel Guide |
Crossed-roller Guide |
| Stepper Motor |
|
|
|
Typical Phase Resistance
|
3.8 Ohms, Bi-directional |
| Typical Phase Current |
1 Amp |
|
DB-9 Male Connector |
|
Pin Assignment and Description |
|
1 |
+5 VDC |
|
2 |
CCW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor |
|
3 |
CW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor |
|
4 |
Common |
|
5 |
Not Connected |
|
6 |
Stepper Motor Phase A+ |
|
7 |
Stepper Motor Phase A- |
|
8 |
Stepper Motor Phase B+ |
|
9 |
Stepper Motor Phase B- |
|
|
|
Base Material |
Aluminum Alloy |
|
Surface Treatment |
Black Anodized |
|
Load Capacity |
4.5 kg |
|
Weight |
1.5 kg |
|
Maximum Speed |
10 °/sec |
|
Typical Repeatability |
+/-4‘ |
|
Typical Positional Accuracy |
+/-9‘ |
|
|

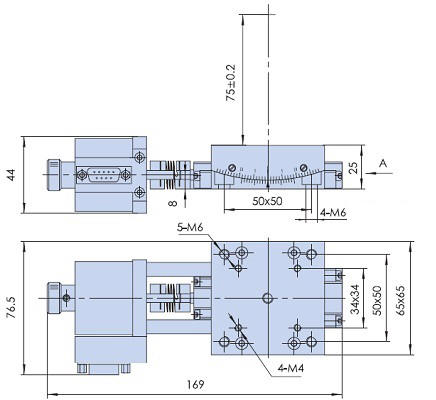

Stepper Motor Driven Mechanical Drawing
(Roll
Table)
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
PR110-15-10-01 |
Dual-axis Stepper Motor Driven Linear Pitch and Roll Stage, Table Size
65x65 mm |
Click to Get a Quote |
|
PR110-15-10-02 |
Dual-axis
Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Pitch and Roll Stage,
Table Size
65x65 mm |
Click to Get a Quote |
|
PR110-15-10-03 |
Dual-axis DC Servo Motor with Quadrature Incremental Optical Encoder Driven Pitch and Roll Stage,
Table Size
65x65 mm |
Click to Get a Quote |
|
PR110-15-10-04 |
Dual-axis Stepper Motor Driven Linear Pitch and Roll Stage
with 500 Cycles per Revolution Quadrature Optical Encoders
Mounted at the back of the Stepper Motors, Table Size
65x65 mm |
Click to Get a Quote |
