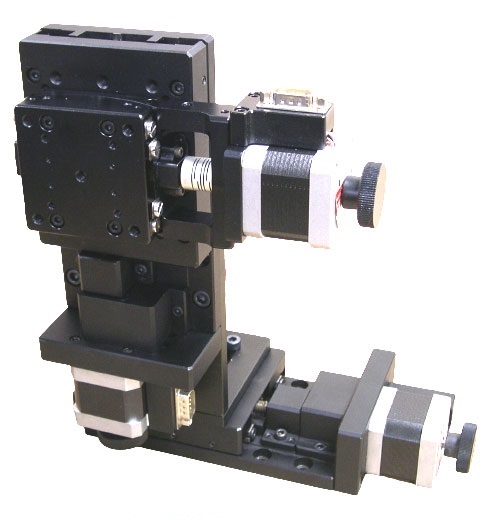

Motorized XZ-axis plus Vertical Goniometer Positioning Stages
|
|
Home
>
Assorted Motorized Multi-axis Actuators
|
|
|
Specifications
|
Structure
Description
|
Linear Travel |
|
Range of Travel (mm)
|
Pitch of Lead Screw
|
| 15 |
1
mm per turn
|
| 30 |
1
mm per turn
|
| 50 |
1
mm per turn
|
| 75 |
1
mm per turn
|
| Longer
than 100 |
4
mm per turn
|
|
|
Goniometer Range of Travel
|
+/-10 Degrees
+/-15 Degrees
+/-45 Degrees
|
| Travel Guide |
High Precision Crossed Roller |
| Motor
|
| |
|
Typical Phase Resistance
|
3.8 Ohms, Bi-directional
|
| Typical Phase Current |
1 Amp |
|
DB-9 Male Connector
|
|
Pin Assignment and Description
|
| 1 |
+5 VDC for the Limit Sensors |
| 2 |
CW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 Ohms)
|
| 3 |
CCW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 Ohms)
|
| 4 |
Return for+5 VDC
|
|
5
|
Not Connected
|
|
6
|
Stepper Motor Phase A+ |
| 7 |
Stepper Motor Phase A- |
| 8 |
Stepper Motor Phase B+ |
| 9 |
Stepper Motor Phase B- |
|
|
Body Material
|
Aluminum Alloy |
|
Surface Treatment
|
Black Anodized |
|
Typical Accuracy
|
Resolution |
Configuration Dependent |
|
Maximum Speed
|
5 mm / sec
|
| Repeatability |
10 microns
|
|
Positional Accuracy
|
10 microns
|
|
Accessories
Description
|
Optional Optical Encoders
Optional Servo Motors
Other Sizes and Strokes Available
|
|
|
|
|
|
Ordering
Information
|
|
Part No.
|
Description
|
Amount
|
|
XZG-xxxx-zzzz-gg-01
|
Stepper Motor Driven
XZ-axis plus Vertical Goniometer Stage
xxxx denotes the
stroke of the X-axis in mm.
zzzz denotes the stroke of the Y-axis in mm.
gg donates the goniometer's
total r
ange
of travel
in Degrees, 20 Degrees, 30 Degrees or 90 Degrees.
|
Click to Get a Quote
|
|
XZG-xxxx-zzzz-gg-02
|
Three Phase Brushless Servo Motor with Quadrature Incremental
Optical Encoder Driven
XZ-axis plus Vertical Goniometer Stage
xxxx denotes the
stroke of the X-axis in mm.
zzzz denotes the stroke of the Y-axis in mm.
gg donates the goniometer's
total r
ange
of travel
in Degrees, 20 Degrees, 30 Degrees or 90 Degrees.
|
Click to Get a Quote
|
|
XZG-xxxx-zzzz-gg-03
|
Stepper Motor Driven
XZ-axis plus Vertical Goniometer Stage
xxxx denotes the
stroke of the X-axis in mm.
zzzz denotes the stroke of the Y-axis in mm.
gg donates the goniometer's
total r
ange
of travel
in Degrees, 20 Degrees, 30 Degrees or 90 Degrees.
|
Click to Get a Quote
|
|
XZG-xxxx-zzzz-gg-04
|
Three Phase Brushless Servo Motor with Quadrature Incremental
Optical Encoder Driven
XZ-axis plus Vertical Goniometer Stage
xxxx denotes the
stroke of the X-axis in mm.
zzzz denotes the stroke of the Y-axis in mm.
gg donates the goniometer's
total r
ange
of travel
in Degrees, 20 Degrees, 30 Degrees or 90 Degrees.
|
Click to Get a Quote
|
|
|
|
|
|
|
|
|
