Specifications
|
YPR-10-10-60
|
Total Weight
|
3.5
kg (7.7 lb)
|
Load Capacity
|
4.0 kg (8.8 lb)
|
Base Material
|
Aluminum Alloy
|
Surface Treatment
|
Black Anodized
|
|
Typical Phase Resistance |
3.8 Ohms, Bi-directional |
Typical Phase Current |
1 Amp |
DB-9 Male Connector
|
Stepper Motor
|
Pin Assignment and Description
|
1
|
+5 VDC
|
2
|
CCW Limit Switch
, Open Collector, Normally Open, Needs Pull up Resistor
(Pitch and Roll Axes)
|
3
|
CW Limit Switch
, Open Collector, Normally Open, Needs Pull up Resistor
|
4
|
Common
(Pitch Axis)
|
5
|
HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor (Roll Axis)
|
6
|
Stepper Motor Phase A+ |
7 |
Stepper Motor Phase A- |
8 |
Stepper Motor Phase B+ |
9 |
Stepper Motor Phase B- |
|
|
|
|
|
|
|
Yaw (Rotary) Axis
|
Structure Description
|
Gear Ratio |
90:1
|
Drive Mechanism |
Worm Gear
|
Travel Guide |
Bearing
|
Typical Accuracy
|
Resolution
|
0.002 degrees (10micro-steps per step)
|
Repeatability
|
+/-0.01 degrees
|
Positional Accuracy
|
0.05 degrees |
Maximum Speed with Stepper Motor
|
30 degrees per second
|
Maximum Speed with Servo Motor
|
90 degrees per second
|
|
Roll (Middle) Axis
|
Structure Description
|
Range of Travel |
+/-10 degrees |
Gear Ratio |
1° (stage) : 352° (motor)
|
Height of Rotation Stage |
75 mm+/-0.2 mm |
Drive Mechanism |
Worm Gear |
Travel Guide
|
Crossed-roller Guide |
Rotation Center Deflection Accuracy
|
0.03 mm
|
Typical Accuracy
|
Resolution
|
Stepper Motor Driver or Servo Motor Optical Encoder Dependent
|
Repeatability
|
+/-0.01 degrees
|
Positional Accuracy
|
0.05 degrees
|
Maximum Speed with Stepper Motor
|
14 degrees per second |
Maximum Speed with Servo Motor
|
45 degrees per second |
|
Pitch (Lower) Axis
|
Structure Description
|
Range of Travel |
+/-10 degrees |
Gear Ratio |
1° (stage) : 352° (motor)
|
Drive Mechanism |
Worm Gear |
Travel Guide
|
Crossed-roller Guide |
Typical Accuracy
|
Resolution
|
Stepper Motor Driver or Servo Motor Optical Encoder Dependent
|
Repeatability
|
+/-0.01 degrees
|
Positional Accuracy
|
0.05 degrees
|
Maximum Speed with Stepper Motor
|
14 degrees per second |
Maximum Speed with Servo Motor
|
45 degrees per second |
|
|
Stepper Motor Driven Mechanical Drawing (Roll Table)
|
Ordering Information
Part No.
|
Description
|
Amount
|
YPR-10-10-60-01
|
Three

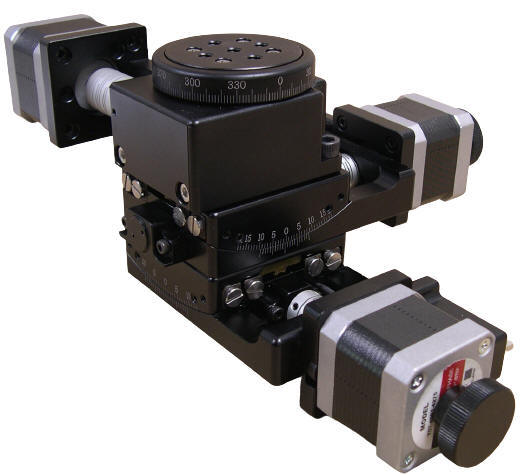

-axis Stepper Motor Driven Yaw, Pitch
and Roll Stage
,
Table Diameter: 60 mm
|
Click to Get a Quote
|
YPR-10-10-60-02
|
Three
-axis
Three Phase Brushless Servo Motor with Quadrature Incremental
Optical Encoder Driven Yaw, Pitch and Roll Stage, Table
Diameter: 60 mm
|
Click to Get a Quote
|
YPR-10-10-60-03
|
Three
-axis
DC Servo Motor with Quadrature Incremental Optical Encoder
Driven Yaw, Pitch and Roll Stage, Table Diameter: 60 mm
|
Click to Get a Quote
|
YPR-10-10-60-04
|
Three
-axis Stepper Motor Driven Yaw, Pitch
and Roll Stage
with 500 Cycles per Revolution Quadrature Optical Encoders
Mounted at the back of the Stepper Motors
,
Table Diameter: 60 mm
|
Click to Get a Quote
|
